Writing new modifiers

OVITO provides a collection of built-in data manipulation and analysis modifiers, which can be found in the ovito.modifiers module. These modifier types are all implemented in C++, and the Python interface allows you to instantiate them, insert them into the modification pipeline of an ObjectNode, and configure their parameters. However, sometimes the capabilities provided by these built-in modifiers are not sufficent and you may want to write your own, completely new type of modifier that can participate in the data pipeline system of OVITO. The following sections describe how this is done.

Inserting a custom modifier into the pipeline

Creating a user-defined modifier requires writing a Python function with the following signature, which will be responsible for computing the effect of the custom modifier:

def modify(frame, input, output):
    ...

The meaning of the parameters and the implementation of this function will be described in later sections. You can insert the custom modifier into the modification pipeline either by using OVITO’s graphical user interface or programmatically from Python:

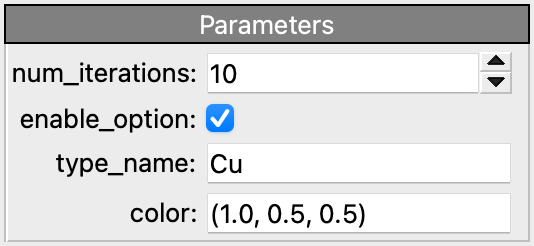

  1. Within the graphical user interface, select Python script from the modifier drop-down list to insert a Python script modifier into the modification pipeline. OVITO provides a text input field which allows you to enter the definition of the modify() function. The corresponding page in the OVITO user manual provides more information on this procedure and on how you can save a custom script modifier for future use within the graphical program.

  2. Via the scripting interface, a custom modifier is inserted into the data pipeline of an ObjectNode by creating an instance of the PythonScriptModifier class as follows:

    from ovito.modifiers import PythonScriptModifier

    # Our custom modifier function:
    def my_modifier(frame, input, output):
        ...

    # Inserting it into the modification pipeline of the node:
    node.modifiers.append(PythonScriptModifier(function = my_modifier))


    Note that the custom modifier function can have any name in this case. It is assigned to the function attribute of the PythonScriptModifier instance, which in turn must be inserted into the node’s modification pipeline.

The modifier function

The custom modifier function defined above is called by OVITO every time the modification pipeline is evaluated. The function receives the data produced by the upstream part of the pipeline (e.g. the particles loaded by a FileSource and further processed by other modifiers that precede the custom modifier in the pipeline). Our Python modifier function then has the possibility to modify or extend the data as needed. After the user-defined Python function has done its work and returns, the output flows further down the pipeline, and, eventually, the final results are stored in the output cache of the ObjectNode and are rendered in the viewports.

It is important to note that the user-defined modifier function is subject to certain restrictions. Since it is repeatedly called by the pipeline system in a callback fashion, it may only manipulate the simulation data that flows through the pipeline and which it receives as an input. It should not manipulate the pipeline itself that it is part of (e.g. adding/removing modifiers) or otherwise change the global program state.

When our custom modifier function is invoked by the pipeline system, it gets passed three arguments:

  • frame (int) – The animation frame number at which the pipeline is evaluated.
  • input (DataCollection) – Contains the input data objects that the modifier receives from upstream.
  • output (DataCollection) – This is where the modifier function should put its output data objects.

The input DataCollection, and in particular the data objects stored in it, should not be modified by the modifier function. They are owned by the upstream part of the modification pipeline and must be accessed in a read-only fashion (e.g. by using the array attribute instead of marray to access per-particle values of a ParticleProperty).

On function entry, i.e. when the modifier function is invoked by the system, the output data collection already contains all data objects also found in the input collection. Thus, the default behavior is that all objects (e.g. particle properties, simulation cell, sttributes, etc.) are passed through unmodified.

Modifying existing data objects

For performance reasons no data copies are made by default, and the output collection consists of references to the original data objects from the input collection. This means, before it is safe to modify a data object in the output data collection, you have to make a copy first. Otherwise you risk permanently modifying data that is owned by the upstream part of the modification pipeline (e.g. the FileSource data cache). An in-place copy of a data object is made using the DataCollection.copy_if_needed() method. The following example demonstrates the principle:

def modify(frame, input, output):

    # Original simulation cell is passed through by default.
    # Output simulation cell is just a reference to the input cell.
    assert(output.cell is input.cell)

    # Make a copy of the simulation cell:
    cell = output.copy_if_needed(output.cell)

    # copy_if_needed() made a deep copy of the simulation cell object.
    # Now the the input and output each point to different objects.
    assert(cell is output.cell)
    assert(cell is not input.cell)

    # Now it's safe to modify the object copy:
    cell.pbc = (False, False, False)

Output of new attributes

In addition to data objects like the simulation cell or particle properties, global quantities (i.e. scalar values) flow down the data pipeline too. They are called attributes in OVITO and can be read, modified or newly added by our modifier function. For example, we can output a new attribute on the basis of an existing attribute in the input:

def modify(frame, input, output):
    output.attributes['dislocation_density'] =
        input.attributes['DislocationAnalysis.total_line_length'] / input.cell.volume

This modifier function generates a new attribute named dislocation_density, which is calculated as the ratio of the dislocation line length in a crystal (which, as we assume in this example, is computed by a DislocationAnalysisModifier preceding our custom modifier in the pipeline) and the simulation box volume.

Creating new data objects (e.g. particle properties)

The custom modifier function can inject new data objects into the modification pipeline simply by adding them to the output data collection:

def modify(frame, input, output):

    # Create a new bonds data object and a bond between atoms 0 and 1.
    bonds = ovito.data.Bonds()
    bonds.add_full(0, 1)

    # Insert into output collection:
    output.add(bonds)

For adding new particle properties (or overwriting existing properties), a special method create_particle_property() is provided by the DataCollection class:

def modify(frame, input, output):
    # Create the 'Color' particle property and set the color of all particles to green:
    color_property = output.create_particle_property(ParticleProperty.Type.Color)
    color_property.marray[:] = (1.0, 0.0, 0.0)

Note that create_particle_property() checks if the particle property already exists. If yes, it automatically copies it in place so you can overwrite its content. Otherwise a fresh ParticleProperty instance is created and added to the output data collection. That means create_particle_property() can be used in both scenarios: to modify an existing particle property or to output a new property.

Furthermore, there exists a second method, create_user_particle_property(), which is used to create custom particle properties (in contrast to standard properties like color, radius, etc.).

Initialization phase

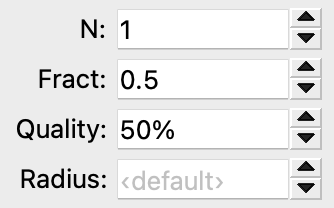

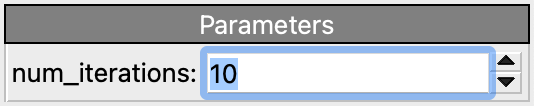

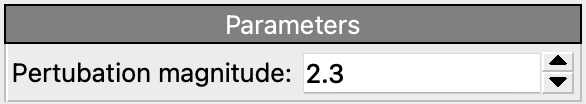

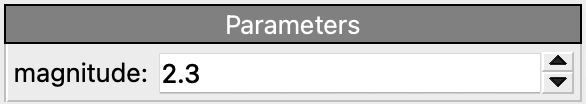

Initialization of parameters and other inputs needed by our custom modifier function should be done outside of the function. For example, our modifier may require reference coordinates of particles, which need to be loaded from an external file. One example is the Displacement vectors modifier of OVITO, which asks the user to load a reference configuration file with the coordinates that should be subtracted from the current particle coordinates. A corresponding implementation of this modifier in Python would look as follows:

from ovito.data import ParticleProperty
from ovito.io import FileSource

reference = FileSource(adjust_animation_interval = False)
reference.load("simulation.0.dump")

def modify(frame, input, output):
    prop = output.create_particle_property(ParticleProperty.Type.Displacement)

    prop.marray[:] = (    input.particle_properties.position.array -
                      reference.particle_properties.position.array)

The script above creates a FileSource to load the reference particle positions from an external data file. Setting adjust_animation_interval to false is required to prevent OVITO from automatically changing the animation length. Within the actual modify() function we can then access the particle coordinates loaded by the FileSource object.

Asynchronous modifiers and progress reporting

Due to technical limitations the custom modifier function is always executed in the main thread of the application. This is in contrast to the built-in asynchronous modifiers of OVITO, which are implemented in C++. They are executed in a background thread to not block the graphical user interface during long-running operations.

That means, if our Python modifier function takes a long time to compute before returning control to OVITO, no input events can be processed by the application and the user interface will freeze. To avoid this, you can make your modifier function asynchronous using the yield Python statement (see the Python docs for more information). Calling yield within the modifier function temporarily yields control to the main program, giving it the chance to process waiting user input events or repaint the viewports:

def modify(frame, input, output):
    for i in range(input.number_of_particles):
        # Perform a small computation step
        ...
        # Temporarily yield control to the system
        yield

In general, yield should be called periodically and as frequently as possible, for example after processing one particle from the input as in the code above.

The yield keyword also gives the user (and the system) the possibility to cancel the execution of the custom modifier function. When the evaluation of the modification pipeline is interrupted by the system, the yield statement does not return and the Python function execution is discontinued.

Finally, the yield mechanism gives the custom modifier function the possibility to report its progress back to the system. The progress must be reported as a fraction in the range 0.0 to 1.0 using the yield statement. For example:

def modify(frame, input, output):
    total_count = input.number_of_particles
    for i in range(0, total_count):
        ...
        yield (i/total_count)

The current progress value will be displayed in the status bar by OVITO. Moreover, a string describing the current status can be yielded, which will also be displayed in the status bar:

def modify(frame, input, output):
    yield "Performing an expensive analysis..."
    ...

Setting display parameters

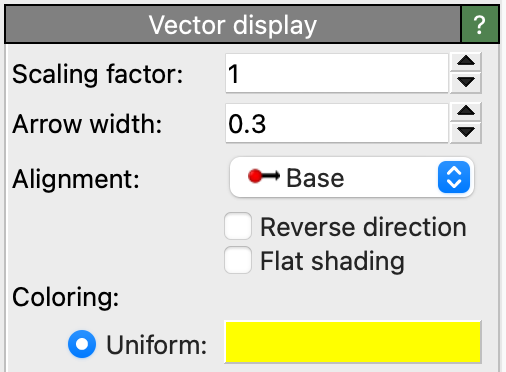

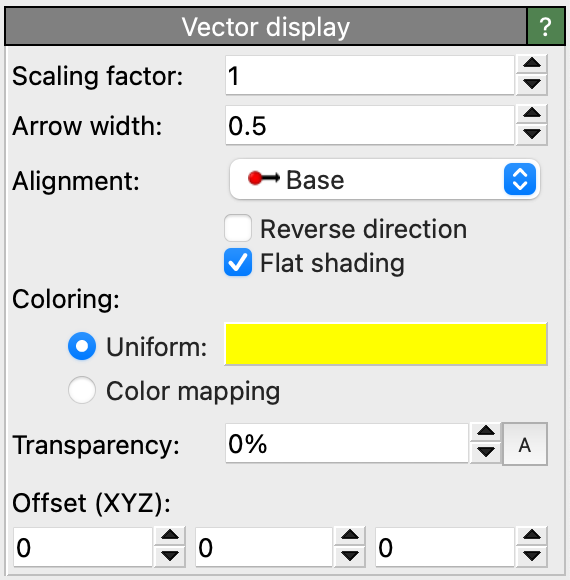

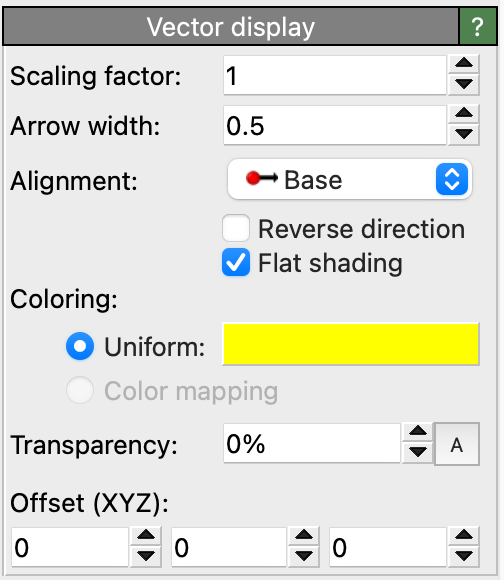

Many data objects such as the Bonds or SimulationCell object are associated with a corresponding Display object, which is responsible for rendering (visualizing) the data in the viewports. The necessary Display object is created automatically when the data object is created and is attached to it by OVITO. It can be accessed through the display attribute of the DataObject base class.

If the script modifier function injects a new data objects into the pipeline, it can configure the parameters of the attached display object. In the following example, the parameters of the BondsDisplay are being initialized:

def modify(frame, input, output):

    # Create a new bonds data object.
    bonds = ovito.data.Bonds()
    output.add(bonds)
    ...

    # Configure visual appearance of bonds.
    bonds.display.color = (1.0, 1.0, 1.0)
    bonds.display.use_particle_colors = False
    bonds.display.width = 0.4

However, every time our modifier function is executed, it will create a new Bonds object together with a new BondsDisplay instance. If the modifier is used in an interactive OVITO session, this will lead to unexpected behavior when the user tries to change the display settings. All parameter changes made by the user will get lost as soon as the modification pipeline is re-evaluated. To mitigate the problem, it is a good idea to create the BondsDisplay just once outside the modifier function and then attach it to the Bonds object created by the modifier function:

bonds_display = BondsDisplay(color=(1,0,0), use_particle_colors=False, width=0.4)

def modify(frame, input, output):
    bonds = ovito.data.Bonds(display = bonds_display)
    output.add(bonds)
