Bonds

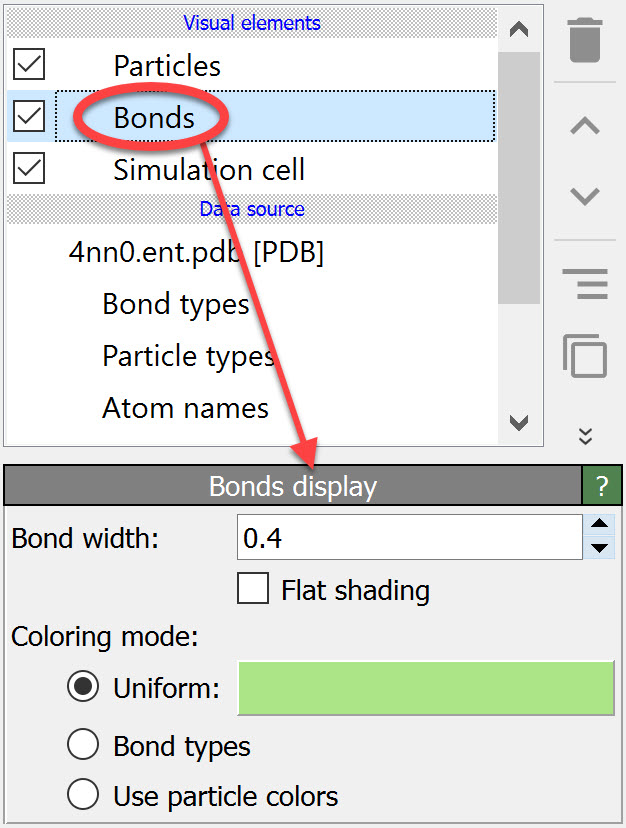

This visual element controls how bonds between pairs of particles are rendered as cylindrical connections.

Bonds are either loaded from the simulation file as part of the model, or they can be created within OVITO by the Create bonds modifier. Alternatively, the Voronoi analysis modifier can generate bonds between nearest neighbor particles.

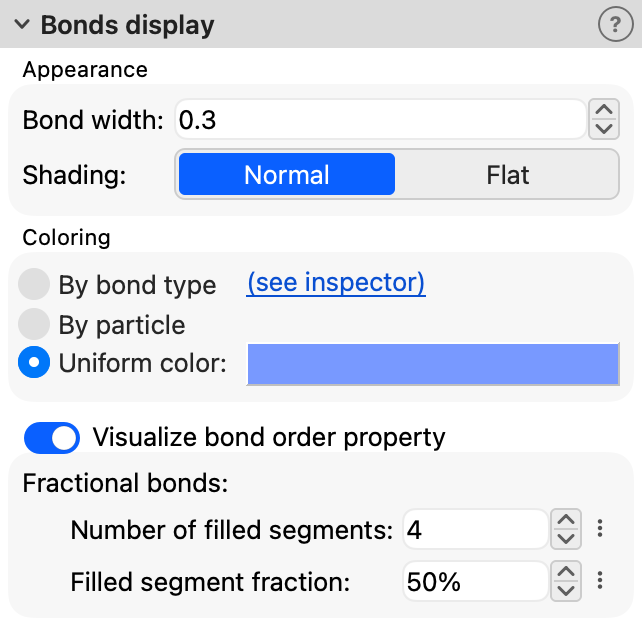

Parameters

Appearance

These settings control the geometric representation of bonds:

Bond width: Controls the uniform display diameter of bond cylinders (default: 0.4 simulation length units). This value is used for all bonds unless overridden by the per-bond Width property. The width is specified in simulation units of length. For bonds with a Bond Order greater than 1, the individual cylinders are automatically rendered slightly thinner to avoid excessive visual overlap.
Flat shading: When enabled, bonds are rendered with flat shading to create the look of thick lines connecting particles. When disabled (default), bonds use smooth shading for a more realistic cylindrical appearance.

Coloring

The color of bonds is determined through a priority hierarchy. The coloring mode selector controls which method is used when explicit per-bond colors are not present:

By bond type: Colors bonds according to their Bond Type property value. Each bond type can have a unique color assigned through the Edit types modifier.
By particle: Bonds adopt colors from the particles they connect. Each bond is rendered as two half-cylinders, with each half colored according to its connected particle.
Uniform color: All bonds are rendered using the same color specified by the color selector (default: gray).

All these options are disabled when the Color per-bond property is defined, which always takes precedence.

Note

To set explicit colors for individual bonds, use the Compute property or Color coding modifiers to set the Color bond property. Once this property exists, it takes precedence over all coloring mode options.

Fractional bonds

Fractional bonds, i.e., bonds having a non-integer Bond Order property, are visualized as dashed cylinders. The integer part of the bond order (0, 1, 2, or 3; capped at 3) determines the number of solid cylinders rendered side by side. A non-zero fractional part adds one dashed cylinder. For example, a bond order of 1.5 is rendered as one solid and one dashed cylinder.

Number of filled segments: The number of dashes per fractional bond cylinder. For a value of n, the dashed pattern consists of n dashes separated by n+1 gaps, starting and ending with a gap. Higher values produce a finer dash pattern (default: 4).
Filled segment fraction: The fraction of the bond length covered by dashes. The remaining fraction is distributed among the gaps. A value of 0 makes dashes invisible; a value of 1 produces a fully solid appearance (default: 0.5).

Additional bond properties

The visualization is also affected by certain properties of the bonds themselves, listed in the following table.

Bond property	Data type	Description
`Bond Order`	Real	Controls the visual representation of a bond. Integer values (1, 2, 3) produce solid cylinders, while non-integer values additionally create dashed cylinders.
`Color`	Real (R,G,B)	Explicit RGB color for individual bonds. Red, green, and blue components must be in the range [0,1].
`Selection`	Integer	Marks currently selected bonds (1 = selected, 0 = unselected). Selected bonds are highlighted in red (only in interactive viewports but not in rendered images).
`Transparency`	Real	Controls the transparency of individual bonds. Must be in the range [0,1].
`Width`	Real	Controls the display diameter of individual bonds.

To see the list of bond properties present in your dataset, open the data inspector panel.
