ovito.data

This Python module defines various data object types, which are produced and processed within OVITO’s data pipeline system. It also provides the DataCollection class as a container for such data objects as well as several utility classes for computing neighbor lists and iterating over the bonds of connected to a particle.

Data containers:

Data objects:

  • Property (holds per-data-element property values)

  • SimulationCell (simulation box geometry and boundary conditions)

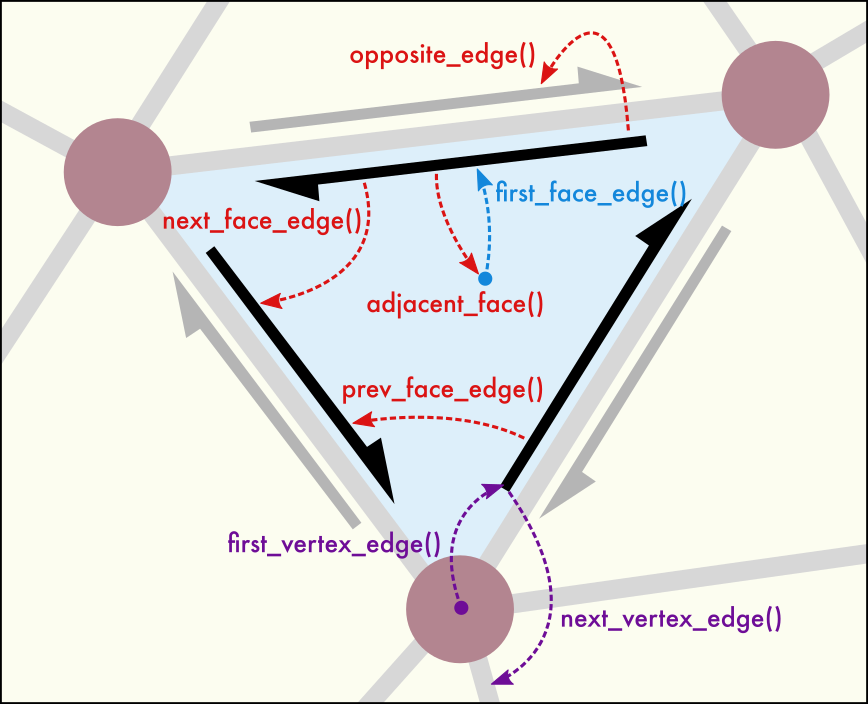

  • SurfaceMesh (polyhedral mesh representing the boundaries of spatial regions)

  • TriangleMesh (general mesh structure made of vertices and triangular faces)

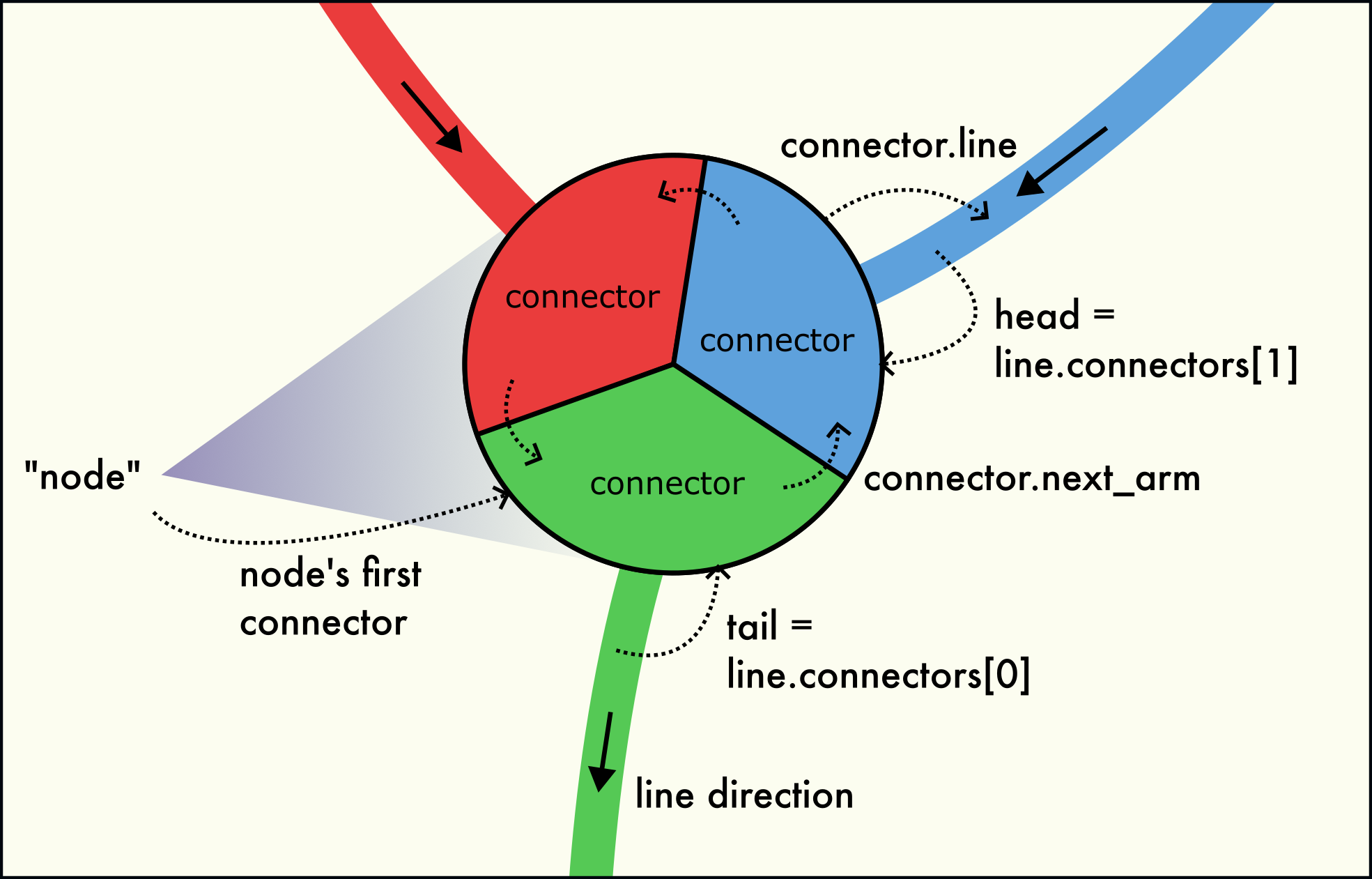

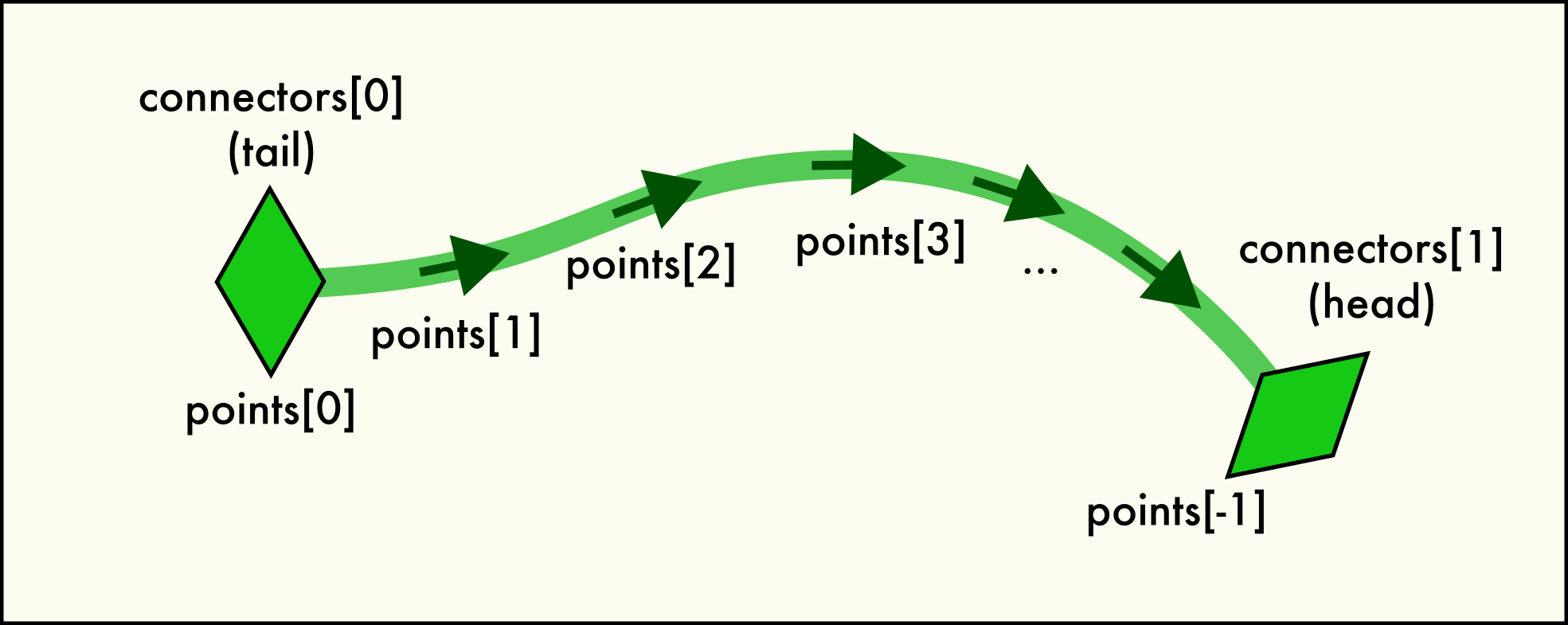

  • DislocationNetwork (set of discrete dislocation lines with Burgers vector information)

Auxiliary data objects:

Utility classes:

class ovito.data.BondType

Base: ovito.data.ElementType

Represents a bond type. This class inherits all its fields from the ElementType base class.

You can enumerate the list of defined bond types by accessing the bond_types bond property object:

bond_type_list = data.particles.bonds.bond_types.types
for bond_type in bond_type_list:
    print(bond_type.id, bond_type.name, bond_type.color)
class ovito.data.Bonds

Base: ovito.data.PropertyContainer

Stores the list of bonds and their properties. A Bonds object is always part of a parent Particles object. You can access it as follows:

data = pipeline.compute()
print("Number of bonds:", data.particles.bonds.count)

The Bonds class inherits the count attribute from its PropertyContainer base class. This attribute returns the number of bonds.

Bond properties

Bonds can be associated with arbitrary bond properties, which are managed in the Bonds container as a set of Property data arrays. Each bond property has a unique name by which it can be looked up:

print("Bond property names:")
print(data.particles.bonds.keys())
if 'Length' in data.particles.bonds:
    length_prop = data.particles.bonds['Length']
    assert(len(length_prop) == data.particles.bonds.count)

New bond properties can be added using the PropertyContainer.create_property() method.

Bond topology

The Topology bond property, which is always present, defines the connectivity between particles in the form of a N x 2 array of indices into the Particles array. In other words, each bond is defined by a pair of particle indices.

for a,b in data.particles.bonds.topology:
    print("Bond from particle %i to particle %i" % (a,b))

Note that the bonds of a system are not stored in any particular order. If you need to enumerate all bonds connected to a certain particle, you can use the BondsEnumerator utility class for that.

Bonds visualization

The Bonds data object has a BondsVis element attached to it, which controls the visual appearance of the bonds in rendered images. It can be accessed through the vis attribute:

data.particles.bonds.vis.enabled = True
data.particles.bonds.vis.flat_shading = True
data.particles.bonds.vis.width = 0.3

Computing bond vectors

Since each bond is defined by two indices into the particles array, we can use these indices to determine the corresponding spatial bond vectors connecting the particles. They can be computed from the positions of the particles:

topology = data.particles.bonds.topology
positions = data.particles.positions
bond_vectors = positions[topology[:,1]] - positions[topology[:,0]]

Here, the first and the second column of the bonds topology array are used to index into the particle positions array. The subtraction of the two indexed arrays yields the list of bond vectors. Each vector in this list points from the first particle to the second particle of the corresponding bond.

Finally, we may have to correct for the effect of periodic boundary conditions when a bond connects two particles on opposite sides of the box. OVITO keeps track of such cases by means of the the special Periodic Image bond property. It stores a shift vector for each bond, specifying the directions in which the bond crosses periodic boundaries. We make use of this information to correct the bond vectors computed above. This is done by adding the product of the cell matrix and the shift vectors from the Periodic Image bond property:

bond_vectors += numpy.dot(data.cell[:3,:3], data.particles.bonds.pbc_vectors.T).T

The shift vectors array is transposed here to facilitate the transformation of the entire array of vectors with a single 3x3 cell matrix. To summarize: In the two code snippets above we have performed the following calculation of the unwrapped vector \(\mathbf{v}\) for every bond (a, b) in parallel:

\(\mathbf{v} = \mathbf{x}_b - \mathbf{x}_a + \mathbf{H} \cdot (n_x, n_y, n_z)^{T}\),

with \(\mathbf{H}\) denoting the simulation cell matrix and \((n_x, n_y, n_z)\) the bond’s PBC shift vector.

Standard bond properties

The following standard properties are defined for bonds:

Property name

Python attribute name

Data type

Component names

Bond Type

bond_types

int

Color

colors

float

R, G, B

Length

float

Particle Identifiers

int64

A, B

Periodic Image

pbc_vectors

int

X, Y, Z

Selection

selection

int

Topology

topology

int64

1, 2

Transparency

float

Width

float

add_bond(a, b, type=None, pbcvec=None)

Creates a new bond between two particles a and b, both parameters being indices into the particles list.

Parameters
  • a (int) – Index of first particle connected by the new bond. Particle indices start at 0.

  • b (int) – Index of second particle connected by the new bond.

  • type (int) – Optional type ID to be assigned to the new bond. This value will be stored to the bond_types array.

  • pbcvec (tuple) – Three integers specifying the bond’s crossings of periodic cell boundaries. The information will be stored in the pbc_vectors array.

Returns

The index of the newly created bond, i.e. (Bonds.count-1).

The method does not check if there already is an existing bond connecting the same pair of particles.

The method does not check if the particle indices a and b do exist. Thus, it is your responsibility to ensure that both indices are in the range 0 to (Particles.count-1).

In case the SimulationCell has periodic boundary conditions enabled, and the two particles connected by the bond are located in different periodic images, make sure you provide the pbcvec argument. It is required so that OVITO does not draw the bond as a direct line from particle a to particle b but as a line passing through the periodic cell faces. You can use the Particles.delta_vector() function to compute pbcvec or use the pbc_shift vector returned by the CutoffNeighborFinder utility.

property bond_types

The Property data array for the Bond Type standard bond property; or None if that property is undefined.

property colors

The Property data array for the Color standard bond property; or None if that property is undefined.

property pbc_vectors

The Property data array for the Periodic Image standard bond property; or None if that property is undefined.

property selection

The Property data array for the Selection standard bond property; or None if that property is undefined.

property topology

The Property data array for the Topology standard bond property; or None if that property is undefined.

class ovito.data.BondsEnumerator(bonds: ovito.data.Bonds)

Utility class that permits efficient iteration over the bonds connected to specific particles.

The constructor takes a Bonds object as input. From the generally unordered list of bonds, the BondsEnumerator will build a lookup table for quick enumeration of bonds of particular particles.

All bonds connected to a specific particle can be subsequently visited using the bonds_of_particle() method.

Warning: Do not modify the underlying Bonds object while the BondsEnumerator is in use. Adding or deleting bonds would render the internal lookup table of the BondsEnumerator invalid.

Usage example

from ovito.io import import_file
from ovito.data import BondsEnumerator
from ovito.modifiers import ComputePropertyModifier

# Load a dataset containing atoms and bonds.
pipeline = import_file('input/bonds.data.gz', atom_style='bond')

# For demonstration purposes, lets here define a compute modifier that calculates the length
# of each bond, storing the results in a new bond property named 'Length'.
pipeline.modifiers.append(ComputePropertyModifier(operate_on='bonds', output_property='Length', expressions=['BondLength']))

# Obtain pipeline results.
data = pipeline.compute()
positions = data.particles.positions  # array with atomic positions
bond_topology = data.particles.bonds.topology  # array with bond topology
bond_lengths = data.particles.bonds['Length']     # array with bond lengths

# Create bonds enumerator object.
bonds_enum = BondsEnumerator(data.particles.bonds)

# Loop over atoms.
for particle_index in range(data.particles.count):
    # Loop over bonds of current atom.
    for bond_index in bonds_enum.bonds_of_particle(particle_index):
        # Obtain the indices of the two particles connected by the bond:
        a = bond_topology[bond_index, 0]
        b = bond_topology[bond_index, 1]

        # Bond directions can be arbitrary (a->b or b->a):
        assert(a == particle_index or b == particle_index)

        # Obtain the length of the bond from the 'Length' bond property:
        length = bond_lengths[bond_index]

        print("Bond from atom %i to atom %i has length %f" % (a, b, length))
bonds_of_particle(index: int) Iterator[int]

Returns an iterator yielding the indices of the bonds connected to the given particle. The indices can be used to index into the Property arrays of the Bonds object.

class ovito.data.CutoffNeighborFinder(cutoff, data_collection)

A utility class that computes particle neighbor lists.

This class lets you iterate over all neighbors of a particle that are located within a specified spherical cutoff. You can use it to build neighbors lists or perform computations that require neighbor vector information.

The constructor takes a positive cutoff radius and a DataCollection providing the input particles and the SimulationCell (needed for periodic systems).

Once the CutoffNeighborFinder has been constructed, you can call its find() method to iterate over the neighbors of a particle, for example:

from ovito.io import import_file
from ovito.data import CutoffNeighborFinder

# Load input simulation file.
pipeline = import_file("input/simulation.dump")
data = pipeline.compute()

# Initialize neighbor finder object:
cutoff = 3.5
finder = CutoffNeighborFinder(cutoff, data)

# Prefetch the property array containing the particle type information:
ptypes = data.particles.particle_types

# Loop over all particles:
for index in range(data.particles.count):
    print("Neighbors of particle %i:" % index)

    # Iterate over the neighbors of the current particle:
    for neigh in finder.find(index):
        print(neigh.index, neigh.distance, neigh.delta, neigh.pbc_shift)

        # The index can be used to access properties of the current neighbor, e.g.
        type_of_neighbor = ptypes[neigh.index]

Note: In case you rather want to determine the N nearest neighbors of a particle, use the NearestNeighborFinder class instead.

Parameters
find(index)

Returns an iterator over all neighbors of the given particle.

Parameters

index (int) – The zero-based index of the central particle whose neighbors should be enumerated.

Returns

A Python iterator that visits all neighbors of the central particle within the cutoff distance. For each neighbor the iterator returns an object with the following property fields:

  • index: The zero-based global index of the current neighbor particle.

  • distance: The distance of the current neighbor from the central particle.

  • distance_squared: The squared neighbor distance.

  • delta: The three-dimensional vector connecting the central particle with the current neighbor (taking into account periodicity).

  • pbc_shift: The periodic shift vector, which specifies how often each periodic boundary of the simulation cell is crossed when going from the central particle to the current neighbor.

The index value returned by the iterator can be used to look up properties of the neighbor particle as demonstrated in the example above.

Note that all periodic images of particles within the cutoff radius are visited. Thus, the same particle index may appear multiple times in the neighbor list of the central particle. In fact, the central particle may be among its own neighbors in a small periodic simulation cell. However, the computed vector (delta) and PBC shift (pbc_shift) will be unique for each visited image of the neighbor particle.

find_at(coords)

Returns an iterator over all particles located within the spherical range of the given center position. In contrast to find() this method can search for neighbors around arbitrary spatial locations, which don’t have to coincide with any physical particle position.

Parameters

coords – A (x,y,z) coordinate triplet specifying the center location around which to search for particles.

Returns

A Python iterator enumerating all particles within the cutoff distance. For each neighbor the iterator returns an object with the following properties:

  • index: The zero-based global index of the current neighbor particle.

  • distance: The distance of the current particle from the center position.

  • distance_squared: The squared distance.

  • delta: The three-dimensional vector from the center to the current neighbor (taking into account periodicity).

  • pbc_shift: The periodic shift vector, which specifies how often each periodic boundary of the simulation cell is crossed when going from the center point to the current neighbor.

The index value returned by the iterator can be used to look up properties of the neighbor particle as demonstrated in the example above.

Note that all periodic images of particles within the cutoff radius are visited. Thus, the same particle index may appear multiple times in the neighbor list. However, the computed vector (delta) and image offset (pbc_shift) will be unique for each visited image of a neighbor particle.

neighbor_distances(index)

Returns the list of distances between some central particle and all its neighbors within the cutoff range.

Parameters

index (int) – The 0-based index of the central particle whose neighbors should be enumerated.

Returns

NumPy array containing the radial distances to all neighbor particles within the cutoff range (in arbitrary order).

This method is equivalent to the following code, but performance is typically a lot better:

def neighbor_distances(index):
    distances = []
    for neigh in finder.find(index):
        distances.append(neigh.distance)
    return numpy.asarray(distances)
neighbor_vectors(index)

Returns the list of vectors from some central particle to all its neighbors within the cutoff range.

Parameters

index (int) – The 0-based index of the central particle whose neighbors should be enumerated.

Returns

Two-dimensional NumPy array containing the vectors to all neighbor particles within the cutoff range (in arbitrary order).

The method is equivalent to the following code, but performance is typically a lot better:

def neighbor_vectors(index):
    vecs = []
    for neigh in finder.find(index):
        vecs.append(neigh.delta)
    return numpy.asarray(vecs)
class ovito.data.DataCollection

Base: ovito.data.DataObject

A DataCollection is a container class holding together individual data objects, each representing different fragments of a dataset. For example, a dataset loaded from a simulation data file may consist of particles, the simulation cell information and additional auxiliary data such as the current timestep number of the snapshots, etc. All this information is contained in one DataCollection, which exposes the individual pieces of information as sub-objects, for example via the DataCollection.particles, DataCollection.cell and DataCollection.attributes fields.

Data collections are the elementary entities that get processed within a data Pipeline. Each modifier receives a data collection from the preceding modifier, alters it in some way, and passes it on to the next modifier. The output data collection of the last modifier in the pipeline is returned by the Pipeline.compute() method.

A data collection essentially consists of a bunch of DataObjects, which are all stored in the DataCollection.objects list. Typically, you don’t access the data objects through this list directly but rather use on of the special accessor fields provided by the DataCollection class, which give more convenient access to data objects of a particular kind. For example, the surfaces dictionary provides key-based access to all the SurfaceMesh instances currently in the data collection.

You can programmatically add or remove data objects from a data collection by manipulating its objects list. For instance, to populate a new data collection instance that is initially empty with a new SimulationCell object:

data = DataCollection()
cell = SimulationCell()
data.objects.append(cell)
assert(data.cell is cell)
apply(modifier, frame=None)

This method applies a Modifier function to the data stored in this collection to modify it in place.

Parameters
  • modifier (ovito.pipeline.Modifier) – The modifier object that should alter the contents of this data collection in place.

  • frame (int) – Optional animation frame number to be passed to the modifier function, which may use it for time-dependent modifications.

The method allows modifying a data collection with one of Ovito’s built-in modifiers directly without the need to build up a complete Pipeline first. In contrast to a data pipeline, the apply() method executes the modifier function immediately and alters the data in place. In other words, the original data in this DataCollection gets replaced by the output produced by the invoked modifier function. Note that it is possible to first create a copy of the original data using the clone() method if needed. The following code example demonstrates how to use the apply() method to successively modify a dataset:

from ovito.io import import_file
from ovito.modifiers import *

data = import_file("input/simulation.dump").compute()
data.apply(CoordinationAnalysisModifier(cutoff=2.9))
data.apply(ExpressionSelectionModifier(expression="Coordination<9"))
data.apply(DeleteSelectedModifier())

Note that it is typically possible to achieve the same result by first populating a Pipeline with the modifiers and then calling its compute() method at the very end:

pipeline = import_file("input/simulation.dump")
pipeline.modifiers.append(CoordinationAnalysisModifier(cutoff=2.9))
pipeline.modifiers.append(ExpressionSelectionModifier(expression="Coordination<9"))
pipeline.modifiers.append(DeleteSelectedModifier())
data = pipeline.compute()

Furthermore, it is possible to use the apply() in the implementation of a user-defined modifier function to invoke the built-in modifiers of OVITO as sub-routine:

# A user-defined modifier function that calls the built-in ColorCodingModifier
# as a sub-routine to assign a color to each atom based on some property
# created within the function itself:
def modify(frame, data):
    data.particles_.create_property('idx', data=numpy.arange(data.particles.count))
    data.apply(ColorCodingModifier(property='idx'), frame)

# Set up a data pipeline that uses the user-defined modifier function:
pipeline = import_file("input/simulation.dump")
pipeline.modifiers.append(modify)
data = pipeline.compute()
property attributes

This field contains a dictionary view with all the global attributes currently associated with this data collection. Global attributes are key-value pairs that represent small tokens of information, typically simple value types such as int, float or str. Every attribute has a unique identifier such as 'Timestep' or 'ConstructSurfaceMesh.surface_area'. This identifier serves as look-up key in the attributes dictionary. Attributes are dynamically generated by modifiers in a data pipeline or come from the data source. For example, if the input simulation file contains timestep information, the timestep number is made available by the FileSource as the 'Timestep' attribute. It can be retrieved from pipeline’s output data collection:

>>> pipeline = import_file('snapshot_140000.dump')
>>> pipeline.compute().attributes['Timestep']
140000

Some modifiers report their calculation results by adding new attributes to the data collection. See each modifier’s reference documentation for the list of attributes it generates. For example, the number of clusters identified by the ClusterAnalysisModifier is available in the pipeline output as an attribute named ClusterAnalysis.cluster_count:

pipeline.modifiers.append(ClusterAnalysisModifier(cutoff = 3.1))
data = pipeline.compute()
nclusters = data.attributes["ClusterAnalysis.cluster_count"]

The ovito.io.export_file() function can be used to output dynamically computed attributes to a text file, possibly as functions of time:

export_file(pipeline, "data.txt", "txt/attr",
    columns = ["Timestep", "ClusterAnalysis.cluster_count"],
    multiple_frames = True)

If you are writing your own modifier function, you let it add new attributes to a data collection. In the following example, the CommonNeighborAnalysisModifier first inserted into the pipeline generates the 'CommonNeighborAnalysis.counts.FCC' attribute to report the number of atoms that have an FCC-like coordination. To compute an atomic fraction from that, we need to divide the count by the total number of atoms in the system. To this end, we append a user-defined modifier function to the pipeline, which computes the fraction and outputs the value as a new attribute named 'fcc_fraction'.

pipeline.modifiers.append(CommonNeighborAnalysisModifier())

def compute_fcc_fraction(frame, data):
    n_fcc = data.attributes['CommonNeighborAnalysis.counts.FCC']
    data.attributes['fcc_fraction'] = n_fcc / data.particles.count

pipeline.modifiers.append(compute_fcc_fraction)
print(pipeline.compute().attributes['fcc_fraction'])
property cell

Returns the SimulationCell data object describing the cell vectors and periodic boundary condition flags. It may be None.

Important

The SimulationCell data object returned by this attribute may be marked as read-only, which means your attempts to modify the cell object will raise a Python error. This is typically the case if the data collection was produced by a pipeline and its objects are owned by the system.

If you intend to modify the SimulationCell data object within this data collection, use the cell_ attribute instead to explicitly request a mutable version of the cell object. See topic Announcing object modification for more information. Use cell for read access and cell_ for write access, e.g.

print(data.cell.volume)
data.cell_.pbc = (True,True,False)

To create a SimulationCell in a data collection that might not have a simulation cell yet, use the create_cell() method or simply assign a new instance of the SimulationCell class to the cell attribute.

clone()

Returns a copy of this DataCollection containing the same data objects as the original.

The method may be used to retain a copy of the original data before modifying a data collection in place, for example using the apply() method:

original = data.clone()
data.apply(ExpressionSelectionModifier(expression="Position.Z < 0"))
data.apply(DeleteSelectedModifier())
print("Number of atoms before:", original.particles.count)
print("Number of atoms after:", data.particles.count)

Note that the clone() method performs an inexpensive, shallow copy, meaning that the newly created collection will still share the data objects with the original collection. Data objects that are shared by two or more data collections are protected against modification by default to avoid unwanted side effects. Thus, in order to subsequently modify the data objects in either the original collection or its copy, you will have to use the underscore notation or the DataObject.make_mutable() method to explicitly request a deep copy of the particular data object(s) you want to modify. For example:

copy = data.clone()
# Data objects are shared by original and copy:
assert(copy.cell is data.cell)

# In order to modify the SimulationCell in the dataset copy, we must request
# a mutable version of the SimulationCell using the 'cell_' accessor:
copy.cell_.pbc = (False, False, False)

# As a result, the cell object in the second data collection has been replaced
# with a deep copy and the two data collections no longer share the same
# simulation cell object:
assert(copy.cell is not data.cell)
create_cell(matrix, pbc=(True, True, True), vis_params=None)

This convenience method conditionally creates a new SimulationCell object and stores it in this data collection. If a simulation cell already existed in the collection (cell is not None), then that cell object is replaced with a modifiable copy if necessary and the matrix and PBC flags are set to the given values. The attached SimulationCellVis element is maintained in this case.

Parameters
  • matrix – A 3x4 array to initialize the cell matrix with. It specifies the three cell vectors and the origin.

  • pbc – A tuple of three Booleans specifying the cell’s pbc flags.

  • vis_params (Mapping[str, Any]) – Optional dictionary to initialize attributes of the attached SimulationCellVis element (only used if the cell object is newly created by the method).

Return type

ovito.data.SimulationCell

The logic of this method is roughly equivalent to the following code:

def create_cell(data: DataCollection, matrix, pbc, vis_params=None) -> SimulationCell:
    if data.cell is None:
        data.cell = SimulationCell(pbc=pbc)
        data.cell[...] = matrix
        data.cell.vis.line_width = <...> # Some value that scales with the cell's size
        if vis_params:
            for name, value in vis_params.items(): setattr(data.cell.vis, name, value)
    else:
        data.cell_[...] = matrix
        data.cell_.pbc = pbc
    return data.cell_

New in version 3.7.4.

create_particles(vis_params=None, **params)

This convenience method conditionally creates a new Particles container object and stores it in this data collection. If the data collection already contains an existing particles object (particles is not None), then that particles object is replaced with a modifiable copy if necessary. The associated ParticlesVis element is preserved.

Parameters
  • params – Key/value pairs passed to the method as keyword arguments are used to set attributes of the Particles object (even if the particles object already existed).

  • vis_params (Mapping[str, Any]) – Optional dictionary to initialize attributes of the attached ParticlesVis element (only used if the particles object is newly created by the method).

Return type

ovito.data.Particles

The logic of this method is roughly equivalent to the following code:

def create_particles(data: DataCollection, vis_params=None, **params) -> Particles:
    if data.particles is None:
        data.particles = Particles()
        if vis_params:
            for name, value in vis_params.items(): setattr(data.particles.vis, name, value)
    for name, value in params.items(): setattr(data.particles_, name, value)
    return data.particles_

Usage example:

coords = [(-0.06,  1.83,  0.81), # xyz coordinates of the 3 particle system to create
          ( 1.79, -0.88, -0.11),
          (-1.73, -0.77, -0.61)]
particles = data.create_particles(count=len(coords), vis_params={'radius': 1.4})
particles.create_property('Position', data=coords)

New in version 3.7.4.

property dislocations

Returns the DislocationNetwork data object; or None if there is no object of this type in the collection. Typically, the DislocationNetwork is created by a pipeline containing the DislocationAnalysisModifier.

property grids

Returns a dictionary view providing key-based access to all VoxelGrids in this data collection. Each VoxelGrid has a unique identifier key, which allows you to look it up in this dictionary. To find out which voxel grids exist in the data collection and what their identifiers are, use

print(data.grids)

Then retrieve the desired VoxelGrid from the collection using its identifier key, e.g.

charge_density_grid = data.grids['charge-density']
print(charge_density_grid.shape)
property objects

The flat list of all top-level DataObjects currently stored in this data collection. You can add or remove data objects in this mutable list as needed.

Typically you don’t have to work with this list directly, because the DataCollection class provides several convenience accessor attributes for the different flavors of data objects. For example, the DataCollection.particles field returns the Particles object from this data objects list. Dictionary views such as DataCollection.tables and DataCollection.surfaces provide key-based access to a particular class of data objects from this list.

property particles

Returns the Particles object, which manages all per-particle properties. It may be None if the data collection contains no particle model at all.

Important

The Particles data object returned by this attribute may be marked as read-only, which means attempts to modify its contents will raise a Python error. This is typically the case if the data collection was produced by a pipeline and all data objects are owned by the system.

If you intend to modify the contents of the Particles object in some way, use the particles_ attribute instead to explicitly request a mutable version of the particles object. See topic Announcing object modification for more information. Use particles for read access and particles_ for write access, e.g.

print(data.particles.positions[0])
data.particles_.positions_[0] += (0.0, 0.0, 2.0)

To create a new Particles object in a data collection that might not have particles yet, use the create_particles() method or simply assign a new instance of the Particles class to the particles attribute.

property surfaces

Returns a dictionary view providing key-based access to all SurfaceMesh objects in this data collection. Each SurfaceMesh has a unique identifier key, which can be used to look it up in the dictionary. See the documentation of the modifier producing the surface mesh to find out what the right key is, or use

print(data.surfaces)

to see which identifier keys exist. Then retrieve the desired SurfaceMesh object from the collection using its identifier key, e.g.

surface = data.surfaces['surface']
print(surface.get_vertices())
property tables

A dictionary view of all DataTable objects in this data collection. Each DataTable has a unique identifier key, which can be used to look it up in this dictionary. You can use

print(data.tables)

to find out which table identifiers exist in the dictionary. Modifiers that generate a data table typically assign a predefined identifier, which can be found in their documentation. Use the key string to retrieve the desired DataTable from the dictionary, e.g.

rdf = data.tables['coordination-rdf']
print(rdf.xy())

DataCollection.tables provides a convenience method create(), which inserts a newly created DataTable into the data collection. The method expects the unique identifier of the new data table as first argument. All other keyword arguments are forwarded to the DataTable constructor to initialize the object’s other attributes:

# Code example showing how to compute a histogram of the particles' x-coordinates within some interval.
x_interval = (0.0, 100.0)
x_coords = data.particles.positions[:,0]
histogram = numpy.histogram(x_coords, bins=50, range=x_interval)[0]

# Output the histogram as a new DataTable, which makes it appear in OVITO's data inspector panel:
table = data.tables.create(
    identifier = 'binning',
    title = 'Binned particle counts',
    plot_mode = DataTable.PlotMode.Histogram,
    interval = x_interval,
    axis_label_x = 'Position X')
table.y = table.create_property('Particle count', data=histogram)
property trajectories

Returns the TrajectoryLines object, which holds the continuous particle trajectories traced by the GenerateTrajectoryLinesModifier. None is returned if the data collection does not contain a TrajectoryLines object.

property triangle_meshes

This is a dictionary view providing key-based access to all TriangleMesh objects currently stored in this data collection. Each TriangleMesh has a unique identifier key, which can be used to look it up in the dictionary.

class ovito.data.DataObject

Abstract base class for all data object types in OVITO.

A DataObject represents a fragment of data processed in or by a data pipeline. See the ovito.data module for a list of different concrete data object types in OVITO. Data objects are typically contained in a DataCollection, which represents a whole data set. Furthermore, data objects can be nested into hierarchy. For example, the Bonds data object is part of the parent Particles data object.

Data objects by themselves are non-visual objects. Visualizing the information stored in a data object in images is the responsibility of so-called visual elements. A data object may be associated with a DataVis element by assigning it to the data object’s vis field. Each type of visual element exposes a set of parameters that allow you to configure the appearance of the data visualization in rendered images and animations.

property identifier

The unique identifier string of the data object. It serves as look-up key in object dictionaries, for example the DataCollection.tables collection, or as a target name in various places where a data object needs to be referenced by name, e.g. the TimeAveragingModifier.operate_on field.

Data objects generated by modifiers in a pipeline typically have an automatically assigned identifier, as documented in the description of the respective modifier. When writing your own modifier function, you are responsible for giving new data objects created by your modifier function a meaningful identifier, so that subsequent modifiers in the pipeline can refer to these data objects.

make_mutable(subobj)

This helper method requests a deep copy of subobj, which must be a child DataObject of this parent DataObject. A copy will only be made in case the sub-object is currently referenced by at least one more parent object. If, however, the sub-object is exclusive owned by this DataObject, no copy is made and the original sub-object is returned as is. The returned object is safe to modify without unexpected side effects, because any shared ownership is converted an exclusive ownership by the method.

Please see the section Announcing object modification for a discussion of object ownership and typical use-cases for this method.

Parameters

subobj (DataObject) – A existing sub-object of this parent data object, for which exclusive ownership is requested.

Returns

A copy of subobj if its ownership was previously shared with some other parent. Otherwise the original object is returned.

property vis

The DataVis element currently associated with this data object, which is responsible for visually rendering the stored data. If set to None, the data object remains non-visual and doesn’t appear in rendered images or the viewports. Furthermore, note that the same DataVis element may be assigned to multiple data objects in order to synchronize their visual appearance.

class ovito.data.DataTable

Base: ovito.data.PropertyContainer

This data object type represents a series of data points and is used for generating histogram plots and other 2d data graphs. A data table consists of an array of y-values and, optionally, an array of corresponding x-values, one for each data point. Both arrays are standard Property objects managed by the data table, which is a PropertyContainer subclass.

If the x data array is not present, the x-coordinates of the data points are implicitly determined by the table’s interval, which specifies a value range along the x-axis over which the data points are evenly distributed. This is used, for example, for histograms having equisized bins.

Data tables generated by modifiers such as CoordinationAnalysisModifier and HistogramModifier are accessible through the DataCollection.tables dictionary of the data collection. Please see the documentation of a modifier to find out what data table(s) it produces.

Examples:

The following code examples demonstrate how to create a new DataTable and fill it with data values in Python. You can use these techniques, for instance, to write custom modifier functions that output their results as data plots in OVITO.

To create a simple x-y scatter point plot:

# Create a DataTable object, setting the title and plot type:
table = DataTable(title='My Scatter Plot', plot_mode=DataTable.PlotMode.Scatter)
# Set the x- and y-coordinates of the data points:
table.x = table.create_property('X coordinates', data=numpy.linspace(0.0, 10.0, 50))
table.y = table.create_property('Y coordinates', data=numpy.cos(table.x))
# Add the DataTable to the output DataCollection:
data.objects.append(table)

Note how the create_property() method is used here to create two Property objects holding the x- and y-coordinates of the data points. These property objects are then set as x and y arrays of the DataTable.

Generating a graph with several line plots requires creating a vector property object for the y array of the DataTable:

table = DataTable(title='Trigonometric functions', plot_mode=DataTable.PlotMode.Line)
table.x = table.create_property('Parameter x', data=numpy.linspace(0.0, 14.0, 100))
# Use the x-coords to compute two y-coords per data point: y(x) = (cos(x), sin(x))
y1y2 = numpy.stack((numpy.cos(table.x), numpy.sin(table.x)), axis=1)
table.y = table.create_property('f(x)', data=y1y2, components=['cos(x)', 'sin(x)'])
data.objects.append(table)

To generate a bar chart, the x property must be filled with numeric IDs 0,1,2,3,… denoting the individual bars. Each bar is then assigned a text label by creating a ElementType instance and adding it to the Property.types list:

table = DataTable(title='My Bar Chart', plot_mode=DataTable.PlotMode.BarChart)
table.x = table.create_property('Structure Type', data=[0, 1, 2, 3])
table.x.types.append(ElementType(id=0, name='Other'))
table.x.types.append(ElementType(id=1, name='FCC'))
table.x.types.append(ElementType(id=2, name='HCP'))
table.x.types.append(ElementType(id=3, name='BCC'))
table.y = table.create_property('Count', data=[65, 97, 10, 75])
data.objects.append(table)

For histogram plots, one can specify the complete range of values covered by the histogram by setting the table’s interval property. The bin counts must be assigned to the table’s y property. The number of elements in the y property array, together with the interval, determine the number of histogram bins and their width:

table = DataTable(title='My Histogram', plot_mode=DataTable.PlotMode.Histogram)
table.y = table.create_property('Counts', data=[65, 97, 10, 75])
table.interval = (0.0, 2.0)   # Four histogram bins of width 0.5 each.
table.axis_label_x = 'Values' # Set the x-axis label of the plot.
data.objects.append(table)

If you are going to refer to the data table after it has been inserted into the DataCollection.objects list, you should give it a unique identifier at construction time, as shown in the following example:

def modify(frame, data):
    table = DataTable(identifier='trig-func', title='My Plot', plot_mode=DataTable.PlotMode.Line)
    table.x = table.create_property('X coords', data=numpy.linspace(0.0, 10.0, 50))
    table.y = table.create_property('Y coords', data=numpy.cos(frame * table.x))
    data.objects.append(table)

pipeline.modifiers.append(modify)
export_file(pipeline, 'output/data.*.txt', 'txt/table', key='trig-func', multiple_frames=True)

Here, the user-defined modifier function outputs a table to the data pipeline having the identifier 'trig-func'. When export_file() is called later with the export file format 'txt/table', the table identifier must be specified as extra argument key to select the right data table to export. Furthermore, the table’s identifier may be used as lookup key to retrieve the table from the tables dictionary view of a DataCollection.

property axis_label_x

The text label of the x-axis. This string is only used for a data plot if the x property of the data table is None and the x-coordinates of the data points are implicitly defined by the table’s interval property. Otherwise the name of the x property is used as axis label.

property interval

A pair of float values specifying the x-axis interval covered by the data points in this table. This interval is only used by the table if the data points do not possess explicit x-coordinates (i.e. if the table’s x property is None). In the absence of explicit x-coordinates, the interval specifies the range of equispaced x-coordinates implicitly generated by the data table.

Implicit x-coordinates are typically used in data tables representing histograms, which consist of equally-sized bins covering a certain value range along the x-axis. The bin size is then given by the interval width divided by the number of data points (see PropertyContainer.count property). The implicit x-coordinates of data points are placed in the centers of the bins. You can call the table’s xy() method to let it explicitly calculate the x-coordinates from the value interval for every data point.

Default

(0.0, 0.0)

property plot_mode

The type of graphical plot for rendering the data in this DataTable. Must be one of the following predefined constants:

  • DataTable.PlotMode.NoPlot

  • DataTable.PlotMode.Line

  • DataTable.PlotMode.Histogram

  • DataTable.PlotMode.BarChart

  • DataTable.PlotMode.Scatter

Default

DataTable.PlotMode.Line

property x

The Property containing the x-coordinates of the data points (for the purpose of plotting). The data points may not have explicit x-coordinates, so this property may be None for a data table. In such a case, the x-coordinates of the data points are implicitly determined by the table’s interval.

xy()

This convenience method returns a two-dimensional NumPy array containing both the x- and the y-coordinates of the data points in this data table. If the table has no explicit x coordinate property set, this method automatically computes equispaced x-coordinates from the interval.

property y

The Property containing the y-coordinates of the data points (for the purpose of plotting). This may be a vector property having more than one component per data point, in which case this data table represents a family of data plots.

class ovito.data.DislocationNetwork

Base: ovito.data.DataObject

This data object stores the network of dislocation lines extracted by a DislocationAnalysisModifier. You can access it through the DataCollection.dislocations field.

The dislocation network is associated with a DislocationVis element controlling the visual appearance of the dislocation lines. It can be accessed through the vis attribute of the DataObject base class.

Example:

from ovito.io import import_file, export_file
from ovito.modifiers import DislocationAnalysisModifier
from ovito.data import DislocationNetwork

import ovito
ovito.enable_logging()

pipeline = import_file("input/simulation.dump")

# Extract dislocation lines from a crystal with diamond structure:
modifier = DislocationAnalysisModifier()
modifier.input_crystal_structure = DislocationAnalysisModifier.Lattice.CubicDiamond
pipeline.modifiers.append(modifier)
data = pipeline.compute()

total_line_length = data.attributes['DislocationAnalysis.total_line_length']
cell_volume = data.attributes['DislocationAnalysis.cell_volume']
print("Dislocation density: %f" % (total_line_length / cell_volume))

# Print list of dislocation lines:
print("Found %i dislocation segments" % len(data.dislocations.segments))
for segment in data.dislocations.segments:
    print("Segment %i: length=%f, Burgers vector=%s" % (segment.id, segment.length, segment.true_burgers_vector))
    print(segment.points)

# Export dislocation lines to a CA file:
export_file(pipeline, "output/dislocations.ca", "ca")

# Or export dislocations to a ParaView VTK file:
export_file(pipeline, "output/dislocations.vtk", "vtk/disloc")

File export

A dislocation network can be written to a data file in the form of polylines using the ovito.io.export_file() function (select the vtk/disloc output format). During export, a non-periodic version is produced by clipping dislocation lines at the domain boundaries.

property segments

The list of dislocation segments in this dislocation network. This list-like object is read-only and contains DislocationSegment objects.

set_segment(index, true_burgers_vector=None, cluster_id=None, points=None, custom_color=None)

This method allows you to change the data fields of individual dislocation lines. Fields for which no new value is specified will keep their current values.

Parameters
  • index – The zero-based index of the dislocation line in the segments array to be modified.

  • true_burgers_vector – The lattice-space Burgers vector (true_burgers_vector) to be assigned to the dislocation line.

  • cluster_id – The numeric ID of the crystallite cluster the dislocation line is embedded in.

  • points – A N x 3 NumPy array with the Cartesian coordinates of the dislocation line vertices.

  • custom_color – RGB color to be used for rendering the line instead of the automatically determined color.

Example of a user-defined modifier function manipulating the dislocation line data:

import numpy as np

def modify(frame, data):

    # Flip Burgers vector and line sense of each dislocation:
    for index, seg in enumerate(data.dislocations.segments):
        data.dislocations_.set_segment(index,
            true_burgers_vector = np.negative(seg.true_burgers_vector),
            points = np.flipud(seg.points))

    # Highlight all 1/6[121] dislocations in a red color:
    for index, seg in enumerate(data.dislocations.segments):
        if np.allclose(seg.true_burgers_vector, (1/6, 2/6, 1/6)):
            data.dislocations_.set_segment(index, custom_color=(1, 0, 0))
class ovito.data.DislocationSegment

A single dislocation line from a DislocationNetwork.

The list of dislocation segments is returned by the DislocationNetwork.segments attribute.

property cluster_id

The numeric identifier of the crystal cluster of atoms containing this dislocation segment.

The true Burgers vector of the segment is expressed in the local coordinate system of this crystal cluster.

property custom_color

The RGB color value to be used for visualizing this particular dislocation line, overriding the default coloring scheme imposed by the DislocationVis.coloring_mode setting. The custom color is only used if its RGB components are non-negative (i.e. in the range 0-1); otherwise the line will be rendered using the computed color depending on the line’s Burgers vector.

Default

(-1.0, -1.0, -1.0)

property id

The unique identifier of this dislocation segment.

property is_infinite_line

This property indicates whether this segment is an infinite line passing through a periodic simulation box boundary. A segment is considered infinite if it is a closed loop and its start and end points do not coincide.

See also the is_loop property.

property is_loop

This property indicates whether this segment forms a closed dislocation loop. Note that an infinite dislocation line passing through a periodic boundary is also considered a loop.

See also the is_infinite_line property.

property length

Returns the length of this dislocation segment.

property points

The list of space points that define the shape of this dislocation segment. This is a N x 3 Numpy array, where N is the number of points along the segment. For closed loops, the first and the last point coincide.

property spatial_burgers_vector

The Burgers vector of the segment, expressed in the global coordinate system of the simulation. This vector is calculated by transforming the true Burgers vector from the local lattice coordinate system to the global simulation coordinate system using the average orientation matrix of the crystal cluster the dislocation segment is embedded in.

property true_burgers_vector

The Burgers vector of the segment, expressed in the local coordinate system of the crystal. Also known as the True Burgers vector.

class ovito.data.ElementType

Base: ovito.data.DataObject

This class represents a single type of data elements, for example a particular atom or bond type. It serves as common base class for the ParticleType and BondType classes, which represent these more specific types.

Each type has a unique numeric id, which is used when looking up types given some numeric value in a typed Property array. An example for a typed property is the particle property 'Particle Type'. The property object manages all its associated types in its Property.types list.

The Property.type_by_id() and Property.type_by_name() methods allow looking up a certain ElementType based on its numeric identifier or name string.

property color

The color used when rendering elements of this type. This is a RGB tuple with components in the range 0.0 – 1.0.

Default

(1.0, 1.0, 1.0)

property enabled

Controls whether this type is currently active or inactive. This flag currently has a meaning only in the context of atomic structure identification. Some analysis modifiers manage a list of the structure types they can identify (e.g. FCC, BCC, etc.). The identification of individual structure types can be turned on or off by the user by changing their enabled flag. See StructureIdentificationModifier.structures for further information.

Default

True

property id

The unique numeric identifier of the type (typically some positive int). The identifier is and must be unique among all element types in the types list of a typed Property. Thus, if you create a new element type, make sure you give it a unique id before inserting it into the types list of a typed property.

Default

0

property name

The name of this type, e.g. the chemical element symbol of an atom type. This string may be empty, in which case its numeric id is the only way of referring to this type.

Default

''

class ovito.data.NearestNeighborFinder(N, data_collection)

A utility class that finds the N nearest neighbors of a particle.

See also

To find all neighbors within a spherical cutoff region around another particle, use CutoffNeighborFinder instead.

The constructor takes the requested number of nearest neighbors, N, and a DataCollection containing the input particles and the optional simulation cell. N must be a positive integer not greater than 64, which is the built-in maximum of neighbors supported by this class.

Note

Keep in mind that, if the system contains only N particles or less, and if the simulation does not use periodic boundary conditions, then the neighbor finder will return less than the requested number of nearest neighbors.

Once the NearestNeighborFinder has been initialized, you can call its find() method to iterate over the sorted list of nearest neighbors of a given central particle:

# Set up a neighbor finder for visiting the 12 closest neighbors of each particle.
finder = NearestNeighborFinder(12, data)

# Loop over all input particles:
for index in range(data.particles.count):
    print("Nearest neighbors of particle %i:" % index)
    # Iterate over the neighbors of the current particle, starting with the closest:
    for neigh in finder.find(index):
        print(neigh.index, neigh.distance, neigh.delta)
        # The index can be used to access properties of the current neighbor, e.g.
        type_of_neighbor = data.particles.particle_types[neigh.index]

In addition, the class provides the find_at() method, which determines the N nearest particles around some arbitrary spatial location:

# Visit particles closest to some spatial point (x,y,z):
xyz_coords = (0.0, 0.0, 0.0)
for neigh in finder.find_at(xyz_coords):
    print(neigh.index, neigh.distance, neigh.delta)
find(index)

Returns an iterator that visits the N nearest neighbors of the given particle in order of ascending distance.

Parameters

index (int) – The zero-based index of the central particle whose neighbors should be determined.

Returns

A Python iterator that visits the N nearest neighbors of the central particle in order of ascending distance. For each neighbor being visited, the iterator returns an object having the following attributes:

  • index: The global index of the current neighbor particle.

  • distance: The distance of the current neighbor from the central particle.

  • distance_squared: The squared neighbor distance.

  • delta: The three-dimensional vector connecting the central particle with the current neighbor (correctly taking into account periodic boundary conditions).

The index can be used to look up properties of the neighbor particle as demonstrated in the first example code above.

Note that several periodic images of the same particle may be visited if the periodic simulation cell is sufficiently small. Then the same particle index will appear more than once in the neighbor list. In fact, the central particle may be among its own neighbors in a sufficiently small periodic simulation cell. However, the computed neighbor vector (delta) will be unique for each image of a neighboring particle.

The number of neighbors actually visited may be smaller than the requested number, N, if the system contains too few particles and is non-periodic.

Note that the find() method will not find other particles located exactly at the same spatial position as the central particle for technical reasons. To find such particles too, which are positioned exactly on top of each other, use find_at() instead.

find_all(indices=None)

Finds the N nearest neighbors of each particle in the system or of the subset of particles specified by indices. This is the batch-processing version of find(), allowing you to efficiently compute the neighbor lists and neighbor vectors of several particles at once, without explicit for-loop and by making use of all parallel processor cores.

The method returns two NumPy arrays:

neigh_idx : NumPy array of shape (M, N) storing the indices of neighbor particles, with M equal to len(indices) or, if indices is None, the total number of particles in the system. N refers to the number of nearest neighbors requested in the NearestNeighborFinder constructor. The computed indices in this array can be used to look up properties of neighbor particles in the global Particles object.

neigh_vec : NumPy array of shape (M, N, 3) storing the xyz components of the three-dimensional neighbor vectors (“delta”), which connect the M central particles with their N respective nearest neighbors.

Parameters

indices – List of zero-based particle indices for which the neighbor lists should be computed. If left unspecified, neighbor lists will be computed for every particle in the system.

Returns

(neigh_idx, neigh_vec)

Tip

To compute all pair-wise distances in one go, i.e. the 2-norms of the neighbor vectors, you can do:

distances = numpy.linalg.norm(neigh_vec, axis=2)   # Yields (M,N) array of neighbor distances
find_at(coords)

Returns an iterator that visits the N nearest particles around a spatial point given by coords in order of ascending distance. Unlike the find() method, which queries the nearest neighbors of a physical particle, find_at() allows searching for nearby particles at arbitrary locations in space.

Parameters

coords – A coordinate triplet (x,y,z) specifying the spatial location where the N nearest particles should be queried.

Returns

A Python iterator that visits the N nearest neighbors in order of ascending distance. For each visited particle the iterator returns an object with the following attributes:

  • index: The index of the current particle (starting at 0).

  • distance: The distance of the current neighbor from the query location.

  • distance_squared: The squared distance to the query location.

  • delta: The three-dimensional vector from the query point to the current particle (correctly taking into account periodic boundary conditions).

If there is a particle located exactly at the query location coords, it will be among the returned neighbors. This is in contrast to the find() function, which skips the central particle itself.

The number of neighbors actually visited may be smaller than the requested number, N, if the system contains too few particles and is non-periodic.

class ovito.data.ParticleType

Base: ovito.data.ElementType

This data object describes one particle or atom type. In atomistic simulations, each chemical element is typically represented by an instance of the ParticleType class. The property fields of the class control how the particles of that type get visualized in terms of e.g. color, particle radius, shape, etc.

The ParticleType class inherits several general data fields from its base class ElementType, e.g. the color, name and id fields. It adds specific fields for particles: radius and shape. Furthermore, the class has additional fields controlling the visual appearance of particles with user-defined shapes.

The ParticleType instances are all stored in the Property object with the name 'Particle Type', which also stores for each particle what its type is. The association between particles and particle types is established via a unique numeric type id. The following code shows how to iterate over all particle types in a dataset, which are listed in the Property.types field of the particle_types property:

# Access the property with the name 'Particle Type':
prop = data.particles.particle_types

# Print list of particle types (their numeric IDs and names)
for t in prop.types: print(f'ID {t.id} -> {t.name}')

# Print the numeric type ID of each particle:
for tid in prop[...]: print(tid)

The order in which the particle types are stored in the Property.types list is arbitrary, and the unique numeric IDs of particle types have no specific meaning in general. A common operation is to find the ParticleType in the list corresponding to a given numeric ID. For this look up operation, the Property class provides the type_by_id() method:

# Look up the particle type with unique ID 2:
t = prop.type_by_id(2)
print(t.name, t.color, t.radius)

# Iterate over all particles and print their type's name:
for tid in prop[...]:
    print(prop.type_by_id(tid).name)

Another common operation is to look up a particle type by name, for example the type representing a certain chemical element. For this kind of look up operation, the type_by_name() method may be used, which assumes that each type has a unique name (which may not always be true):

# Print numeric ID of particle type 'Si':
print(prop.type_by_name('Si').id)
property backface_culling

Activates back-face culling for the user-defined particle shape mesh to speed up rendering. If turned on, polygonal sides of the shape mesh facing away from the viewer will not be rendered. You can turn this option off if the particle’s shape is not closed and two-sided rendering is required. This option only has an effect if a user-defined shape has been assigned to the particle type using the load_shape() method.

Default

True

property highlight_edges

Activates the highlighting of the polygonal edges of the user-defined particle shape during rendering. This option only has an effect if a user-defined shape has been assigned to the particle type using the load_shape() method.

Default

False

load_defaults()

Given the type’s chemical name, which must have been set before calling this method, initializes the type’s color and radius fields with default values from OVITO’s internal database of chemical elements. This method is useful when creating new atom types while building up a molecule structure.

load_shape(filepath: str)

Assigns a user-defined shape to the particle type. Particles of this type will subsequently be rendered using the polyhedral mesh loaded from the given file. The method will automatically detect the format of the geometry file and supports standard file formats such as OBJ, STL and VTK that contain triangle meshes, see this table.

The shape loaded from the geometry file will be scaled with the radius value set for this particle type or the per-particle value stored in the Radius particle property if present. The shape of each particle will be rendered such that its origin is located at the coordinates of the particle.

The following example script demonstrates how to load a user-defined shape for the first particle type (index 0) loaded from a LAMMPS dump file, which can be accessed through the Property.types list of the Particle Type particle property.

pipeline = import_file("input/simulation.dump")
pipeline.add_to_scene()

types = pipeline.source.data.particles_.particle_types_
types.type_by_id_(1).load_shape("input/tetrahedron.vtk")
types.type_by_id_(1).highlight_edges = True
property mass

The mass of this particle type.

Default

0.0

property radius

This property controls the display radius of the particles of this type.

When set to zero, particles of this type will be rendered using the standard size specified by the ParticlesVis.radius parameter. Furthermore, precedence is given to any per-particle sizes assigned to the Radius particle property if that property has been defined.

Default

0.0

The following example script demonstrates how to set the display radii of two particle types loaded from a simulation file, which can be accessed through the Property.types list of the Particle Type particle property.

pipeline = import_file("input/simulation.dump")
pipeline.add_to_scene()

def setup_particle_types(frame, data):
    types = data.particles_.particle_types_
    types.type_by_id_(1).name = "Cu"
    types.type_by_id_(1).radius = 1.35
    types.type_by_id_(2).name = "Zr"
    types.type_by_id_(2).radius = 1.55
pipeline.modifiers.append(setup_particle_types)
property shape

Selects the geometric shape used when rendering particles of this type. Supported modes are:

  • ParticlesVis.Shape.Unspecified (default)

  • ParticlesVis.Shape.Sphere

  • ParticlesVis.Shape.Box

  • ParticlesVis.Shape.Circle

  • ParticlesVis.Shape.Square

  • ParticlesVis.Shape.Cylinder

  • ParticlesVis.Shape.Spherocylinder

  • ParticlesVis.Shape.Mesh

By default, the standard particle shape that is set in the ParticlesVis visual element is used to render particles of this type. Parameter values other than Unspecified allow you to control the rendering shape on a per-type basis. Mode Sphere includes ellipsoid and superquadric particle shapes, which are enabled by the presence of the Aspherical Shape and Superquadric Roundness particle properties.

The load_shape() method lets you specify a user-defined mesh geometry for this particle type. Calling this method automatically switches the shape parameter to mode Mesh.

Setting the shapes of particle types permanently, i.e., for all frames of a loaded simulation trajectory, typically requires a user-defined modifier function. This function is inserted into the Pipeline to make the necessary changes to the ParticleType objects associated with the Property named Particle Type:

from ovito.io import import_file
from ovito.vis import *

# Load a simulation file containing numeric particle types 1, 2, 3, ...
pipeline = import_file("input/nylon.data")
pipeline.add_to_scene()

# Set the default particle shape in the ParticlesVis visual element,
# which will be used by all particle types for which we do not specify a different shape below.
pipeline.compute().particles.vis.shape = ParticlesVis.Shape.Box
pipeline.compute().particles.vis.radius = 1.0

# A user-defined modifier function that configures the shapes of particle types 1 and 2:
def setup_particle_types(frame, data):
    # Write access to property 'Particle Type':
    types = data.particles_.particle_types_
    # Write access to numeric ParticleTypes, which are sub-objects of the Property object:
    types.type_by_id_(1).radius = 0.5
    types.type_by_id_(1).shape = ParticlesVis.Shape.Cylinder
    types.type_by_id_(2).radius = 1.2
    types.type_by_id_(2).shape = ParticlesVis.Shape.Sphere
pipeline.modifiers.append(setup_particle_types)

# Render a picture of the 3d scene:
vp = Viewport(camera_dir = (-2,1,-1))
vp.zoom_all()
vp.render_image(filename='output/particles.png', size=(320,240), renderer=TachyonRenderer())
property use_mesh_color

Use the intrinsic mesh color(s) instead of the particle color when rendering particles of this type. This option only has an effect if a user-defined shape has been assigned to the particle type using the load_shape() method.

Default

False

property vdw_radius

The van der Waals radius of the particle type. This value is used by the CreateBondsModifier to decide which pairs of particles are close enough to be connected by a bond. In contrast to the radius parameter, the van der Waals radius does not affect the visual appearance of the particles of this type.

Default

0.0

class ovito.data.Particles

Base: ovito.data.PropertyContainer

This object stores a system of particles and their properties. Additional things which are typically associated with molecular systems, e.g. bonds, angles, etc. are stored in corresponding sub-objects.

A Particles object is usually part of a DataCollection where it can be found via the DataCollection.particles property.

The total number of particles is specified by the count attribute, which the Particles class inherits from its PropertyContainer base class.

Particles are usually associated with a set of properties, e.g. position, type, velocity. Each of the properties is represented by a separate Property data object, which is basically an array of numeric values, one for each particle in the system. A particle property is identified by its unique name and can be looked up via the dictionary interface of the PropertyContainer base class. OVITO predefines a set of standard properties, which have a fixed data layout, meaning, and role:

Standard property name

Data type

Component names

Angular Momentum

float

X, Y, Z

Angular Velocity

float

X, Y, Z

Aspherical Shape

float

X, Y, Z

Centrosymmetry

float

Charge

float

Cluster

int64

Color

float

R, G, B

Coordination

int

Deformation Gradient

float

XX, YX, ZX, XY, YY, ZY, XZ, YZ, ZZ

Dipole Magnitude

float

Dipole Orientation

float

X, Y, Z

Displacement Magnitude

float

Displacement

float

X, Y, Z

DNA Strand

int

Elastic Deformation Gradient

float

XX, YX, ZX, XY, YY, ZY, XZ, YZ, ZZ

Elastic Strain

float

XX, YY, ZZ, XY, XZ, YZ

Force

float

X, Y, Z

Kinetic Energy

float

Mass

float

Molecule Identifier

int64

Molecule Type

int

Nucleobase

int

Nucleotide Axis

float

X, Y, Z

Nucleotide Normal

float

X, Y, Z

Orientation

float

X, Y, Z, W

Particle Identifier

int64

Particle Type

int

Periodic Image

int

X, Y, Z

Position

float

X, Y, Z

Potential Energy

float

Radius

float

Rotation

float

X, Y, Z, W

Selection

int

Spin

float

Strain Tensor

float

XX, YY, ZZ, XY, XZ, YZ

Stress Tensor

float

XX, YY, ZZ, XY, XZ, YZ

Stretch Tensor

float

XX, YY, ZZ, XY, XZ, YZ

Structure Type

int

Superquadric Roundness

float

Phi, Theta

Torque

float

X, Y, Z

Total Energy

float

Transparency

float

Vector Color

float

R, G, B

Velocity Magnitude

float

Velocity

float

X, Y, Z

For some of the most important properties, this container class provides quick access getters such as positions, identifiers, or particle_types to look them up:

coords = data.particles.positions

User-defined particle properties having non-standard names, and standard properties for which no quick access getter exists, can be looked up by literal name:

mol_ids = data.particles['Molecule Identifier']

For more information on how to add or modify particle properties, please see the PropertyContainer and Property classes.

add_particle(position)

Adds a new particle to the model. The particle count will be incremented by one. The method assigns position to the Position property of the new particle. The values of all other properties are initialized to zero.

Parameters

position (array-like) – The xyz coordinates for the new particle.

Returns

The index of the newly created particle, i.e. (Particles.count-1).

property angles

A PropertyContainer storing the list of angles defined for the molecular model (may be None).

property bonds

The Bonds data object storing the list of bonds and their properties (may be None).

property colors

The Property data array for the Color standard particle property; or None if that property is undefined.

create_bonds(vis_params=None, **params)

This convenience method conditionally creates and associates a Bonds object with this Particles parent object. If there is already an existing bonds object (bonds is not None), then that bonds object is replaced with a modifiable copy if necessary. The attached BondsVis element is preserved.

Parameters
  • params – Key/value pairs passed to the method as keyword arguments are used to set attributes of the Bonds object (even if the bonds object already existed).

  • vis_params (Mapping[str, Any]) – Optional dictionary to initialize attributes of the attached BondsVis element (only used if the bonds object is newly created by the method).

Return type

ovito.data.Bonds

The logic of this method is roughly equivalent to the following code:

def create_bonds(particles: Particles, vis_params=None, **params) -> Bonds:
    if particles.bonds is None:
        particles.bonds = Bonds()
        if vis_params:
            for name, value in vis_params.items(): setattr(particles.bonds.vis, name, value)
    for name, value in params.items(): setattr(particles.bonds_, name, value)
    return particles.bonds_

Usage example:

pairs = [(0, 1), (1, 2), (2, 0)] # Pairs of particle indices to connect by bonds
bonds = data.particles_.create_bonds(count=len(pairs), vis_params={'width': 0.6})
bonds.create_property('Topology', data=pairs)

New in version 3.7.4.

delta_vector(a, b, cell, return_pbcvec=False)

Computes the vector connecting two particles a and b in a periodic simulation cell by applying the minimum image convention.

This is a convenience wrapper for the SimulationCell.delta_vector() method, which computes the vector between two arbitrary spatial locations \(r_a\) and \(r_b\) taking into account periodic boundary conditions. The version of the method described here takes two particle indices a and b as input, computing the shortest vector \({\Delta} = (r_b - r_a)\) between them using the minimum image convention. Please see the SimulationCell.delta_vector() method for further information.

Parameters
  • a – Zero-based index of the first input particle. This may also be an array of particle indices.

  • b – Zero-based index of the second input particle. This may also be an array of particle indices with the same length as a.

  • cell (SimulationCell) – The periodic domain. Typically, DataCollection.cell is used as argument here.

  • return_pbcvec (bool) – If True, also returns the vector \(n\), which specifies how often the computed particle-to-particle vector crosses the cell’s face.

Returns

The delta vector and, optionally, the vector \(n\).

property dihedrals

A PropertyContainer storing the list of dihedrals defined for the molecular model (may be None).

property forces

The Property data array for the Force standard particle property; or None if that property is undefined.

property identifiers

The Property data array for the Particle Identifier standard particle property; or None if that property is undefined.

property impropers

A PropertyContainer storing the list of impropers defined for the molecular model (may be None).

property masses

The Property data array for the Mass standard particle property; or None if that property is undefined.

property orientations

The Property data array for the Orientation standard particle property; or None if that property is undefined.

property particle_types

The Property data array for the Particle Type standard particle property; or None if that property is undefined.

property positions

The Property data array for the Position standard particle property; or None if that property is undefined.

remap_indices(particles: Particles, indices: Sequence[int] = None) numpy.ndarray | slice

In case the storage order of atoms or particles changes during the course of a simulation, this method can determine the mapping of particles from one snapshot of the trajectory to another. It uses the unique identifiers of the particles to do that.

Given two data collections A and B containing the same set of particles but in different order, remap_indices() determines for each particle in B the zero-based index at which the same particle is found in A. For instance:

>>> A = pipeline.compute(frame=0)
>>> B = pipeline.compute(frame=1)
>>> A.particles.identifiers[...]
[8 101  5 30 99]
>>> B.particles.identifiers[...]
[5 101 30 99  8]
>>> A.particles.remap_indices(B.particles)
[2 1 3 4 0]

The index mapping generated by remap_indices() allows you to retrieve property values of particles in A in the same order in which they appear in B, making it easy to perform computations involving property values at different trajectory timesteps, e.g.:

mapping = A.particles.remap_indices(B.particles)
displacements = B.particles.positions - A.particles.positions[mapping]

remap_indices() compares the unique IDs stored in the Particle Identifier property arrays of both snapshots to compute the index permutation map. If this property is not defined, which may be the case if the imported trajectory file did not contain atom IDs, the remap_indices() method simply assumes that both snapshots use the same constant storage order and returns the identity mapping - as a Python slice object for optimal performance when being used for NumPy indexing. A slice object is also returned in case the ordering of particle IDs turns out to be the same in both snapshots and no remapping is necessary.

Note

An error will be raised if particles with duplicate IDs occur in snapshot A - but it is okay if B contains duplicate IDs. Furthermore, it is not an error if A contains additional particles that are not present in B - as long as all particles from B are found in A.

The default behavior of the method is to look up all particles of B in A. But the index mapping can also be established just for a subset of particles from B by supplying the optional parameter indices. The method expects an array of zero-based indices specifying which particles from snapshot B should be looked up in snapshot A. The returned mapping will have the same length as indices. Example:

# The numeric ID of atom type 'H':
hydrogen_type = B.particles.particle_types.type_by_name('H').id
# Determine the indices of all H atoms in data collection B:
hydrogen_indices = numpy.flatnonzero(B.particles.particle_types == hydrogen_type)

# Determine the corresponding indices of the same atoms in data collection A:
mapping = A.particles.remap_indices(B.particles, hydrogen_indices)

# In snapshot A the same particles are all H atoms too:
assert numpy.all(A.particles.particle_types[mapping] == hydrogen_type)

New in version 3.7.5.

property selection

The Property data array for the Selection standard particle property; or None if that property is undefined.

property structure_types

The Property data array for the Structure Type standard particle property; or None if that property is undefined.

property velocities

The Property data array for the Velocity standard particle property; or None if that property is undefined.

class ovito.data.Property

Base: ovito.data.DataObject

Stores the property values for an array of data elements (e.g. particles, bonds or voxels).

Each property, for example a particle property, is represented by one Property object storing the property values for all particles. Thus, a Property object is basically an array of values whose length matches the number of data elements.

All Property objects belonging to the same class of data elements, for example all particle properties, are managed by a PropertyContainer. In the case of particle properties, the corresponding container class is the Particles class, which is a specialization of the generic PropertyContainer base class.

Data access

A Property object behaves like a Numpy array. For example, you can access the property value for the i-th data element using indexing:

positions = data.particles['Position']
print('Position of first particle:', positions[0])
print('Z-coordinate of second particle:', positions[1,2])
for xyz in positions:
    print(xyz)

Element indices start at zero. Properties can be either vectorial (e.g. velocity vectors are stored as an N x 3 array) or scalar (1-d array of length N). The length of the first array dimension is in both cases equal to the number of data elements (number of particles in the example above). Array elements can either be of data type float64, int32 or int64.

If you want to modify the per-element values in a property array, make sure you are working with a modifiable version of the array by employing the underscore notation, e.g.:

modifiable_positions = data.particles_['Position_']
modifiable_positions[0] = (0.1, 2.3, 0.5)

Typed properties

The standard particle property 'Particle Type' stores the types of particles encoded as integer values, e.g.:

>>> data = node.compute()
>>> tprop = data.particles['Particle Type']
>>> print(tprop[...])
[2 1 3 ..., 2 1 2]

Here, each number in the property array refers to one of the particle types (e.g. 1=Cu, 2=Ni, 3=Fe, etc.). The defined particle types, each one represented by an instance of the ParticleType auxiliary class, are stored in the types array of the Property. Each type has a unique id, a human-readable name and other attributes like color and radius that control the visual appearance of particles belonging to the type:

>>> for type in tprop.types:
...     print(type.id, type.name, type.color, type.radius)
...
1 Cu (0.188 0.313 0.972) 0.74
2 Ni (0.564 0.564 0.564) 0.77
3 Fe (1 0.050 0.050) 0.74

IDs of types typically start at 1 and form a consecutive sequence as in the example above. Note, however, that the types list may store the ParticleType objects in an arbitrary order. Thus, in general, it is not valid to directly use a type ID as an index into the types array. Instead, the type_by_id() method should be used to look up the ParticleType:

>>> for i,t in enumerate(tprop): # (loop over the type ID of each particle)
...     print('Atom', i, 'is of type', tprop.type_by_id(t).name)
...
Atom 0 is of type Ni
Atom 1 is of type Cu
Atom 2 is of type Fe
Atom 3 is of type Cu

Similarly, a type_by_name() method exists that looks up a ParticleType by name. For example, to count the number of Fe atoms in a system:

>>> Fe_type_id = tprop.type_by_name('Fe').id   # Determine ID of the 'Fe' type
>>> numpy.count_nonzero(tprop == Fe_type_id)   # Count particles having that type ID
957

Note that OVITO supports multiple type classifications. For example, in addition to the 'Particle Type' standard particle property, which stores the chemical types of atoms (e.g. C, H, Fe, …), the 'Structure Type' property may hold the structural types computed for atoms (e.g. FCC, BCC, …) maintaining its own list of known structure types in the types array.

property component_count

The number of vector components if this is a vector property; or 1 if this is a scalar property.

property component_names

The list of names of the vector components if this is a vector property. For example, for the Position particle property this field contains ['X', 'Y', 'Z'].

property name

The name of the property.

type_by_id(id, raise_error=True)

Looks up and returns the ElementType with the given unique numeric ID in this property’s types list. Depending on raise_error, raises a KeyError or returns None if no type with the numeric ID exists.

Usage example:

# Iterate over the numeric per-particle types stored in the 'Structure Type'
# particle property array and print the corresponding human-readable type names:
for index, type_id in enumerate(data.particles.structure_types):
    print("Atom {} is a {} atom".format(
        index, data.particles.structure_types.type_by_id(type_id).name))

An “underscore” version of the method exists, which should be used whenever you intend to modify the returned type object. type_by_id_() implicitly calls make_mutable() on the ElementType to make sure it can be changed without unexpected side effects:

# Give the numeric atom types from a LAMMPS simulation some names:
data.particles_.particle_types_.type_by_id_(1).name = 'C'
data.particles_.particle_types_.type_by_id_(2).name = 'H'
type_by_name(name, raise_error=True)

Looks up and returns the ElementType with the given name in this property’s types list. If multiple types exists with the same name, the first type is returned. Depending on raise_error, raises a KeyError or returns None if there isn’t a type with that name.

Usage example:

# Look up the numeric ID of atom type Si and count how many times it appears in the 'Particle Type' array
id_Si = data.particles.particle_types.type_by_name('Si').id
Si_atom_count = numpy.count_nonzero(data.particles.particle_types == id_Si)

An “underscore” version of the method exists, which should be used whenever you intend to modify the returned type object. type_by_name_() implicitly calls make_mutable() on the ElementType to make sure it can be changed without unexpected side effects:

# Rename a structure type created by the PTM modifier:
data.particles_.structure_types_.type_by_name_('Hexagonal diamond').name = 'Wurtzite'
property types

The list of ElementType instances attached to this property.

Note that the element types may be stored in arbitrary order in this list. Thus, it is not valid to use a numeric type ID as an index into this list.

class ovito.data.PropertyContainer

Base: ovito.data.DataObject

A dictionary-like object storing a set of Property objects.

It implements the collections.abc.Mapping interface. That means it can be used like a standard read-only Python dict object to access the properties by name, e.g.:

data = pipeline.compute()

positions = data.particles['Position']
has_selection = 'Selection' in data.particles
name_list = data.particles.keys()

New properties are typically added to a container with a call to create_property() as described here. To remove an existing property from a container, you can use Python’s del statement:

del data.particles_['Selection']

OVITO has several concrete implementations of the abstract PropertyContainer interface:

property count

The number of data elements in this container, e.g. the number of particles. This value is always equal to the lengths of all Property arrays managed by this container.

create_property(name, dtype=None, components=None, data=None)

Adds a new property to the container and optionally initializes it with the per-element data provided by the data parameter. The method returns the new Property instance.

The method allows to create standard as well as user-defined properties. To create a standard property, one of the standard property names must be provided as name argument:

colors = numpy.random.random_sample(size = (data.particles.count, 3))
data.particles_.create_property('Color', data=colors)

The length of the provided data array must match the number of existing elements in the container, which is given by the count attribute. You can alternatively assign the per-element values to the property after its construction:

prop = data.particles_.create_property('Color')
prop[...] = numpy.random.random_sample(size = prop.shape)

To create a user-defined property, use a non-standard property name:

values = numpy.arange(0, data.particles.count, dtype=int)
data.particles_.create_property('myint', data=values)

In this case the data type and the number of vector components of the new property are inferred from the provided data Numpy array. Providing a one-dimensional array creates a scalar property while a two-dimensional array creates a vectorial property. Alternatively, the dtype and components parameters can be specified explicitly if you are going to assign the property values at a later time:

prop = data.particles_.create_property('myvector', dtype=float, components=3)
prop[...] = numpy.random.random_sample(size = prop.shape)

If the property to be created already exists in the container, it is replaced with a modifiable copy if necessary. The existing per-element data from the old property is retained if data is None.

Note: If the container contains no properties yet, then the number of elements (e.g. particles or bonds) is still undefined. In this case the create_property() method lets you define the number of elements when inserting the very first property by specifying a data array of the desired length. For example, to create a new Particles container from scratch with 10 particles, a Numpy array of length 10 is used to initialize the Position particle property:

# An empty Particles container to begin with:
particles = Particles()

# Create 10 particles with random xyz coordinates:
xyz = numpy.random.random_sample(size = (10,3))
particles.create_property('Position', data=xyz)

After the initial Positions property has been created, the number of particles in the container is now determined and any subsequently added properties must have the exact same length.

Parameters
  • name – Either a standard property type constant or a name string.

  • data – An optional data array with per-element values for initializing the new property. The size of the array must match the element count of the container and the shape must be consistent with the number of components of the property to be created.

  • dtype – The element data type when creating a user-defined property. Must be either int or float.

  • components (int) – The number of vector components when creating a user-defined property.

Returns

The newly created Property object.

delete_elements(mask)

Deletes a subset of the elements from this container. The elements to be deleted must be specified in terms of a 1-dimensional mask array having the same length as the container (see count). The method will delete those elements whose corresponding mask value is non-zero, i.e., the i-th element will be deleted if mask[i]!=0.

For example, to delete all currently selected particles, i.e., the subset of particles whose Selection property is non-zero, one would simply write:

data.particles_.delete_elements(data.particles['Selection'])

The effect of this statement is the same as for applying the DeleteSelectedModifier to the particles list.

delete_indices(indices)

Deletes a subset of the elements from this container. The elements to be deleted must be specified in terms of a sequence of indices, all in the range 0 to count-1. The method accepts any type of iterable object, including sequence types and generators.

For example, to delete every other particle, one could use Python’s range() function to generate all even indices up to the length of the particle container:

data.particles_.delete_indices(range(0, data.particles.count, 2))
property title

The title of the data object under which it appears in the user interface of OVITO.

class ovito.data.SimulationCell

Base: ovito.data.DataObject

This object stores the geometric shape and boundary conditions of the simulation box. Typically there is exactly one SimulationCell object in a DataCollection, which is accessible through the cell field:

data = pipeline.compute()
print(data.cell[...])   # Use [...] to cast SimulationCell object to a NumPy array

The cell matrix

The geometry of the simulation cell is encoded as a 3x4 matrix \(\mathbf{M}\). The first three columns \(\mathbf{a}\), \(\mathbf{b}\), \(\mathbf{c}\) of the matrix are the vectors spanning the three-dimensional parallelepiped in Cartesian space. The fourth column specifies the Cartesian coordinates of the cell’s origin \(\mathbf{o}\) within the global simulation coordinate system:

\[\begin{split}\mathbf{M} = \begin{pmatrix} a_x & b_x & c_x & o_x \\ a_y & b_y & c_y & o_y \\ a_z & b_z & c_z & o_z \\ \end{pmatrix}\end{split}\]

The cell matrix is represented by a two-dimensional NumPy array of shape (3,4) using row-major storage order:

a = data.cell[:,0]
b = data.cell[:,1]
c = data.cell[:,2]
o = data.cell[:,3]

The is2D flag of the simulation cell indicates whether the system is two-dimensional. The cell matrix of a 2d system also has the 3x4 shape, but the cell vector \(\mathbf{c}\) and the last row of the cell matrix are ignored by many computations in OVITO if the system is marked as 2d.

Periodic boundary conditions

The pbc field stores a tuple of three Boolean flags that indicate for each cell vector whether the system is periodic in that direction or not. OVITO uses that information in various computations. If the system is two-dimensional, the value of the third pbc flag is ignored.

Modifying the simulation cell

When you modify the entries of the cell matrix, make sure you use the underscore notation to request a modifiable version of the SimulationCell object:

# Make cell twice as large along the Y direction by scaling the second cell vector:
data.cell_[:,1] *= 2.0

Reset the simulation cell to an orthogonal box \((L_x, L_y, L_z)\) centered at the origin:

lx = 20.0; ly = 10.0; lz = 8.0
data.cell_[:,0] = (lx, 0, 0)
data.cell_[:,1] = (0, ly, 0)
data.cell_[:,2] = (0, 0, lz)
data.cell_[:,3] = numpy.dot((-0.5, -0.5, -0.5), data.cell[:3,:3])
data.cell_.pbc = (True, True, True)

Conversion between Cartesian and reduced coordinates

Given a point in 3d space, \(\mathbf{p}=(x, y, z)\), expressed in coordinates of the Cartesian simulation system, you can compute the corresponding reduced cell coordinates by extending the point to a quadruplet \((x, y, z, 1)\) and multiplying it with the inverse cell matrix \(\mathbf{M}^*\):

p_cartesian = (x, y, z)
p_reduced   = cell.inverse @ numpy.append(p_cartesian, 1.0)  # @-operator is shorthand for numpy.matmul()

This effectively performs an affine transformation. The reverse transformation back to Cartesian coordinates in the global simulation system works in the same way. The following operation converts a 3d point from reduced cell coordinates to simulation coordinates:

p_reduced   = (xs, ys, zs)
p_cartesian = cell @ numpy.append(p_reduced, 1.0)  # @-operator is shorthand for numpy.matmul()

Transforming vectors (as opposed to points) between Cartesian and reduced cell coordinates works somewhat differently, because vectors are not affected by the translation of the simulation cell, i.e., when the cell’s origin does not coincide with the origin of the global simulation coordinate system. A vector \(\mathbf{v}=(x, y, z)\) should thus be amended with a zero, \((x, y, z, 0)\), before applying the 3x4 transformation matrix to ignore the translational component:

v_cartesian     = (vx, vy, vz)
v_reduced       = cell.inverse @ numpy.append(v_cartesian, 0.0)
v_cartesian_out = cell @ numpy.append(v_reduced, 0.0)
assert numpy.allclose(v_cartesian_out, v_cartesian)

The operations described above transform individual 3d points or vectors. In case you have to transform an entire array of points or vectors, for example the list of atomic positions, it is most efficient to apply the transformation to all elements of the array at once. Here is how you can do the affine transformation back and forth between Cartesian and reduced coordinates for an array:

cartesian_positions     = data.particles.positions
reduced_positions       = (cell.inverse[0:3,0:3] @ cartesian_positions.T).T + cell.inverse[0:3,3]
cartesian_positions_out = (cell[0:3,0:3] @ reduced_positions.T).T + cell[0:3,3]
assert numpy.allclose(cartesian_positions_out, cartesian_positions)

When transforming an array of vectors, leave away the translation term and perform just the linear transformation (3x3 matrix-vector multiplication).

Visual representation

Each SimulationCell object has an attached SimulationCellVis element, which controls the visual appearance of the wireframe box in rendered images. It can be accessed via the vis attribute inherited from the DataObject base class:

data = pipeline.compute()
# Change display color of simulation cell to red:
data.cell.vis.rendering_color = (1.0, 0.0, 0.0)
# Or turn off the display of the cell completely:
data.cell.vis.enabled = False
delta_vector(ra, rb, return_pbcvec=False)

Computes the vector connecting two points \(r_a\) and \(r_b\) in a periodic simulation cell by applying the minimum image convention.

The method starts by computing the 3d vector \({\Delta} = r_b - r_a\) for two points \(r_a\) and \(r_b\), which may be located in different images of the periodic simulation cell. The minimum image convention is then applied to obtain the new vector \({\Delta'} = r_b' - r_a\), where the original point \(r_b\) has been replaced by the periodic image \(r_b'\) that is closest to \(r_a\), making the vector \({\Delta'}\) as short as possible (in reduced coordinate space). \(r_b'\) is obtained by translating \(r_b\) an integer number of times along each of the three cell directions: \(r_b' = r_b - H*n\), with \(H\) being the 3x3 cell matrix and \(n\) being a vector of three integers that are chosen by the method such that \(r_b'\) is as close to \(r_a\) as possible.

Note that the periodic image convention is applied only along those cell directions for which periodic boundary conditions are enabled (see pbc property). For other directions no shifting is performed, i.e., the corresponding components of \(n = (n_x,n_y,n_z)\) will always be zero.

The method is able to compute the results for either an individual pair of input points or for two arrays of input points. In the latter case, i.e. if the input parameters ra and rb are both 2-D arrays of shape Nx3, the method returns a 2-D array containing N output vectors. This allows applying the minimum image convention to a large number of point pairs in one function call.

The option return_pbcvec lets the method return the vector \(n\) introduced above as an additional output. The components of this vector specify the number of times the image point \(r_b'\) needs to be shifted along each of the three cell directions in order to bring it onto the original input point \(r_b\). In other words, it specifies the number of times the computed vector \({\Delta} = r_b - r_a\) crosses a periodic boundary of the cell (either in positive or negative direction). For example, the PBC shift vector \(n = (1,0,-2)\) would indicate that, in order to get from input point \(r_a\) to input point \(r_b\), one has to cross the cell boundaries once in the positive x-direction and twice in the negative z-direction. If return_pbcvec is True, the method returns the tuple (\({\Delta'}\), \(n\)); otherwise it returns just \({\Delta'}\). Note that the vector \(n\) computed by this method can be used, for instance, to correctly initialize the Bonds.pbc_vectors property for newly created bonds that cross a periodic cell boundary.

Parameters
  • ra – The Cartesian xyz coordinates of the first input point(s). Either a 1-D array of length 3 or a 2-D array of shape (N,3).

  • rb – The Cartesian xyz coordinates of the second input point(s). Must have the same shape as ra.

  • return_pbcvec (bool) – If True, also returns the vector \(n\), which specifies how often the vector \((r_b' - r_a)\) crosses the periodic cell boundaries.

Returns

The vector \({\Delta'}\) and, optionally, the vector \(n\).

Note that there exists also a convenience method Particles.delta_vector(), which should be used in situations where \(r_a\) and \(r_b\) are the coordinates of two particles in the simulation cell.

property inverse

Read-only property returning the reciprocal cell matrix \(\mathbf{M}^*\) - an array of shape (3,4):

\[\mathbf{M}^* = \begin{bmatrix} \mathbf{a}^* & \mathbf{b}^* & \mathbf{c}^* & \mathbf{o}^* \end{bmatrix}\]

with the real-space cell volume \(V = (\mathbf{a} \times \mathbf{b}) \cdot \mathbf{c}\) and reciprocal cell vectors given by

\[\mathbf{a}^* = \frac{\mathbf{b} \times \mathbf{c}}{V} \qquad \mathbf{b}^* = \frac{\mathbf{c} \times \mathbf{a}}{V} \qquad \mathbf{c}^* = \frac{\mathbf{a} \times \mathbf{b}}{V} \qquad \mathbf{o}^* = -\begin{pmatrix} \mathbf{a}^* \; \mathbf{b}^* \; \mathbf{c}^* \end{pmatrix} \mathbf{o} \mathrm{.}\]
property is2D

Specifies whether the system is two-dimensional (instead of three-dimensional). For two-dimensional systems, the third pbc flag and the cell vector \(\mathbf{c}\) are typically ignored.

Default

False

property pbc

A tuple of three Boolean flags specifying whether periodic boundary conditions are enabled along the cell’s three spatial directions.

Default

(False, False, False)

property volume

Read-only property computing the volume of the three-dimensional simulation cell. The returned value is equal to the absolute determinant of the 3x3 submatrix formed by the three cell vectors, i.e. the scalar triple product \(V=|(\mathbf{a} \times \mathbf{b}) \cdot \mathbf{c}|\):

assert cell.volume == abs(numpy.linalg.det(cell[0:3,0:3]))
property volume2D

Read-only property computing the area of the two-dimensional simulation cell (see is2D). The returned value is equal to the magnitude of the cross-product of the first two cell vectors, i.e. \(V_{\mathrm{2d}} = |\mathbf{a} \times \mathbf{b}|\):

assert cell.volume2D == numpy.linalg.norm(numpy.cross(cell[:,0], cell[:,1]))
class ovito.data.SurfaceMesh

Base: ovito.data.DataObject

This data object type represents a surface in three-dimensional space, i.e.. a two-dimensional manifold that is usually closed and orientable. The underlying representation of the surface is a discrete mesh made of vertices, edges, and planar faces. See the user manual page on surface meshes for more information on this data object type.

Surface meshes are typically produced by modifiers such as ConstructSurfaceModifier, CreateIsosurfaceModifier, CoordinationPolyhedraModifier or VoronoiAnalysisModifier.

Each surface mesh has a unique identifier by which it can be looked up in the DataCollection.surfaces dictionary:

# Apply a CreateIsosurfaceModifier to a VoxelGrid to create a SurfaceMesh:
pipeline.modifiers.append(CreateIsosurfaceModifier(operate_on='voxels:charge-density', property='Charge density', isolevel=0.05))
data = pipeline.compute()

# The SurfaceMesh created by the modifier has the identifier 'isosurface':
surface = data.surfaces['isosurface']

Vertices, halfedges, and faces

A surface mesh is made of a set of vertices, a set of directed halfedges each connecting two vertices, and a set of faces, each formed by a circular sequence of halfedges. The connectivity information, i.e., which vertices are connected by halfedges and which halfedges form the faces, is stored in the topology sub-object of the SurfaceMesh. See the SurfaceMeshTopology class for more information.

Vertices and faces of the surface mesh can be associated with arbitrary property values, similar to how particles can have arbitrary properties assigned to them in OVITO. These properties are managed by the vertices and faces PropertyContainer sub-objects of the surface mesh. The vertices of the mesh are always associated with the property named Position, which stores the three-dimensional coordinates of each vertex, similar to the Position property of particles in OVITO.

vertex_coords = surface.vertices['Position']

The SurfaceMeshVis element, which is responsible for rendering the surface mesh, provides the option to visualize local vertex and face property values using a color mapping scheme.

surface.vis.color_mapping_mode = SurfaceMeshVis.ColorMappingMode.Vertex
surface.vis.color_mapping_property = 'Position.Z'
surface.vis.color_mapping_interval = (min(vertex_coords[:,2]), max(vertex_coords[:,2]))

If you want to modify property values of the mesh, keep in mind that you have to use underscore notation, for example:

data.surfaces['isosurface_'].vertices_['Position_'] += (xoffset, yoffset, zoffset)

Periodic simulation domains

A surface mesh may be embedded in a periodic domain, i.e. in a simulation cell with periodic boundary conditions. That means edges and faces of the surface mesh can connect vertices on opposite sides of the simulation box and will wrap around correctly. OVITO takes care of computing the intersections of such a periodic surface with the box boundaries and automatically produces a non-periodic representation of the mesh when it comes to displaying the surface. If needed, you can explicitly request a non-periodic version of the mesh, which was clipped at the periodic box boundaries, by calling the to_triangle_mesh() method from a script.

The spatial domain of the surface mesh is the SimulationCell object stored in its SurfaceMesh.domain field. Note that this attached SimulationCell may, in some situations, not be identical with the global simulation cell set for the DataCollection.

Spatial regions

If it is a closed, orientable manifold the surface mesh subdivides three-dimensional space into separate spatial regions. For example, if the surface mesh was constructed by the ConstructSurfaceModifier from a set of input particles, then the volume enclosed by the surface is the “filled” interior region and the exterior space is the “empty” region containing no particles.

In general, the SurfaceMesh class manages a variable list of regions, each being identified by a numeric, zero-based index. The locate_point() method allows to determine which spatial region some point in space belongs to.

A surface mesh may be degenerate, which means it contains no vertices and faces. In such a case there is only one spatial region filling entire space. For example, when there exist no input particles, the ConstructSurfaceModifier is unable to construct a regular surface mesh and the “empty” region fills the entire simulation cell. Conversely, if the periodic simulation cell is completely filled with particles, the “filled” region covers the entire periodic simulation domain and the resulting surface mesh consists of no vertices or faces, i.e., it is also degenerate. To discriminate between the two situations, the SurfaceMesh class has a space_filling_region field, which specifies the spatial region that fills entire space in cases where the mesh is degenerate.

File export

A surface mesh may be exported to a geometry file in the form of a triangle mesh using OVITO’s export_file() function. To this end, a non-periodic version is produced by truncating triangles at the domain boundaries and generating “cap polygons” filling the holes that occur at the intersection of the surface with periodic domain boundaries. The following example code writes a VTK geometry file (vtk/trimesh export format):

from ovito.io import import_file, export_file
from ovito.data import SurfaceMesh
from ovito.modifiers import ConstructSurfaceModifier

# Load a particle set and construct the surface mesh:
pipeline = import_file("input/simulation.dump")
pipeline.modifiers.append(ConstructSurfaceModifier(radius = 2.8))
mesh = pipeline.compute().surfaces['surface']

# Export the mesh to a VTK file for visualization with ParaView.
export_file(mesh, 'output/surface_mesh.vtk', 'vtk/trimesh')

Clipping planes

A set of clipping planes can be assigned to a SurfaceMesh to clip away parts of the mesh for visualization purposes. This may be useful to e.g. cut a hole into a closed surface allowing to look inside the enclosed volume. The SurfaceMesh objects manages a list of clipping planes, which is accessible through the get_clipping_planes() and set_clipping_planes() methods. Note that the cut operations are non-destructive and get performed only on the transient, non-periodic version of the mesh generated during image rendering or when exporting the mesh to a file. The original surface mesh is not affected. The SliceModifier, when applied to a SurfaceMesh, performs the slice by simply adding a corresponding clipping plane to the SurfaceMesh. The actual truncation of the mesh happens later on, during the final visualization step, when a non-periodic version is computed.

connect_opposite_halfedges() bool

Links together pairs of halfedges in the mesh to form a two-dimensional manifold made of connected faces. For each halfedge \(a \to b\) the method tries to find the corresponding reverse halfedge \(b \to a\), which bounds the adjacent face. The two halfedges are then linked together to form a pair. The method returns True to indicate that all halfedges of the mesh have been successfully associated with a corresponding opposite halfedge. In this case, the mesh is said to be closed, i.e., its faces form a contiguous manifold.

Note

For this method to work, all faces of the mesh must have been created using the same winding order. That means their vertices must all be ordered either clockwise or counter-clockwise when viewed from the same side of the surface manifold. Only then do the halfedges of neighboring faces run in opposite directions and can be successfully paired by this method.

New in version 3.7.9.

create_face(vertices: Sequence[int] | numpy.ndarray) int

Adds a new face to the mesh. vertices must be a sequence of two or more zero-based indices into the mesh’s vertex list. The method creates a loop of halfedges connecting the given vertices to form a closed polygon. The zero-based index of the newly created face is returned.

Tip

If you intend to add several faces to the mesh, consider using create_faces() instead. It is potentially much faster than calling create_face() multiple times.

Note

Visible faces should be made of three or more vertices that form a convex polygon. Faces that represent a non-convex polygon will likely be rendered incorrectly by OVITO. Faces having only two edges, while technically valid, will not get rendered because they are degenerate.

Code example:

# Add a new SurfaceMesh object to the DataCollection with unique object identifier 'quad'.
# The simulation cell of the particle system is adopted also as domain of the SurfaceMesh.
mesh = data.surfaces.create('quad', title='Quad', domain=data.cell)

# Create 4 mesh vertices forming a quadrilateral.
verts = [[0,0,0], [10,0,0], [10,10,0], [0,10,0]]
mesh.create_vertices(verts)

# Create a face connecting the 4 vertices.
mesh.create_face([0,1,2,3])

# Initialize the 'Color' property of the newly created face.
mesh.faces.create_property('Color', data=[(1,0,0)])

New in version 3.7.9.

create_faces(vertex_lists: Sequence[Sequence[int]] | numpy.ndarray) int

Adds several new polygonal faces to the mesh.

Parameters

vertex_lists – A sequence of sequences, one for each face to be created, which specify the vertex indices to be connected by the new mesh faces.

Returns

Index of the first newly created face.

vertex_lists may be list of tuples for example. The following call creates a 3-sided and a 4-sided polygonal face:

mesh.create_faces([(0,1,2), (3,4,5,6)])

For best performance, pass a two-dimensional NumPy array to create multiple faces which all have the same number of vertices:

# Nx3 array [[0,1,2], [3,4,5], [6,7,8], ...] for connecting 3N vertices with triangle faces.
triangle_list = numpy.arange(mesh.vertices.count).reshape((mesh.vertices.count//3, 3))
mesh.create_faces(triangle_list)

A third option is to specify the faces as one linear array, in which each face’s vertex list is prefixed with the number of vertices. For example, to create a 3-sided face 0-1-2 and a 4-sided face 3-4-5-6, one would write:

mesh.create_faces(numpy.asarray([3,0,1,2,  4,3,4,5,6]))

Note that the data must be provided as a NumPy array in this case, not a Python list.

The create_faces() method has two effects: It increments the mesh’s topology.face_count and it extends the arrays in the mesh’s faces property container, which stores all per-face properties. The method raises an error if any of the specified vertex indices does not exist in the mesh. That means you should first call create_vertices() to add vertices to the mesh before creating faces referencing these vertices.

Note

Visible faces should be made of three or more vertices forming convex polygons. Faces that represent non-convex polygons will likely be rendered incorrectly by OVITO. Faces having only two edges, while technically valid, will not get rendered because they are degenerate.

Usage example:

# Add a new SurfaceMesh object to the DataCollection with unique object identifier 'tetrahedron'.
# The simulation cell of the particle system is adopted also as domain of the SurfaceMesh.
mesh = data.surfaces.create('tetrahedron', title='Tetrahedron', domain=data.cell)

# Create 4 mesh vertices.
verts = [[0,0,0], [10,0,0], [0,10,0], [0,0,10]]
mesh.create_vertices(verts)

# Create 4 triangular faces forming a tetrahedron.
mesh.create_faces([[0,1,2], [0,2,3], [0,3,1], [1,3,2]])

# Initialize the 'Color' property of the newly created faces with RGB values.
mesh.faces.create_property('Color', data=[(1,0,0), (1,1,0), (0,0,1), (0,1,0)])

# Make it a "closed" mesh, connecting the four faces to form a surface manifold.
mesh.connect_opposite_halfedges()

New in version 3.7.9.

create_vertices(coords: Sequence[Sequence[float]] | numpy.ndarray) int

Adds a set of new vertices to the mesh. coords must be an \(n \times 3\) array specifying the xyz coordinates of the \(n\) vertices to create. The coordinates will be copied into the Position vertex property, which is managed by the vertices property container. Furthermore, the vertex_count value of the mesh’s topology will be incremented by \(n\).

Initially, the new vertices will not be associated with any faces. Use create_face() or create_faces() to create faces connecting the vertices.

New in version 3.7.9.

property domain

The SimulationCell describing the (possibly periodic) domain which this surface mesh is embedded in. Note that this cell generally is independent of and may be different from the cell found in the DataCollection.

property faces

The PropertyContainer storing the per-face properties of the mesh.

In general, an arbitrary set of uniquely named properties may be associated with the faces of a surface mesh. OVITO defines the following standard face properties, which have a well-defined meaning and prescribed data layout:

Standard property name

Data type

Component names

Color

float

R, G, B

Region

int

Selection

int

The property Color can be set to give each face of the surface mesh an individual color. It overrides the uniform coloring otherwise controlled by the SurfaceMeshVis element.

The property Region links each face with the volumetric region of the SurfaceMesh that it bounds (see description above). The values of this property are zero-based indices into the regions list of the mesh.

The property Selection controls the selection state of each individual mesh face. This property is set by modifiers that create selections, such as ExpressionSelectionModifier, and is used by modifiers that operate on the subset of currently selected faces, such as AssignColorModifier. All faces whose Selection property has a non-zero value are part of the current selection set.

get_clipping_planes()

Returns an \(N \times 4\) array containing the definitions of the N clipping planes attached to this SurfaceMesh.

Each plane is defined by its unit normal vector and a signed displacement magnitude, which determines the plane’s distance from the coordinate origin along the normal, giving four numbers per plane in total. Those parts of the surface mesh which are on the positive side of the plane (in the direction the normal vector) will be cut away during rendering.

Note that the returned Numpy array is a copy of the internal data stored by the SurfaceMesh.

get_face_vertices() numpy.ndarray | list[list[int]]

Returns an array with the vertex indices of all mesh faces.

If all \(n\) faces of the surface mesh have the same, uniform number of vertices, \(m\), for example, if they are all triangles, then this method returns a NumPy array of shape \((n, m)\) containing the zero-based vertex indices. Otherwise, it returns a list of lists, in which each nested list may have different length.

New in version 3.7.9.

locate_point(pos, eps=1e-6)

Determines which spatial region of the mesh contains the given point in 3-d space.

The function returns the numeric ID of the region pos is located in. Note that region ID -1 is typically reserved for the empty exterior region, which, if it exists, is the one not containing any atoms or particles. Whether non-negative indices refer to only filled (interior) regions or also empty regions depends on the algorithm that created the surface mesh and its spatial regions.

The parameter eps is a numerical precision threshold to detect if the query point is positioned exactly on the surface boundary, i.e. on the manifold separating two spatial regions. This condition is indicated by the special return value None. Set eps to 0.0 to disable the point-on-boundary test. Then the method will never return None as a result, but the determination of the spatial region will become numerically unstable if the query point is positioned right on a boundary surface.

Parameters
  • pos (array-like) – The (x,y,z) coordinates of the query point

  • eps (float) – Numerical precision threshold for point-on-boundary test

Returns

The numeric ID of the spatial region containing pos; or None if pos is exactly on the dividing boundary between two regions

property regions

The PropertyContainer storing the properties of the spatial regions of the mesh.

In general, an arbitrary set of uniquely named properties may be associated with the regions of a surface mesh. OVITO defines the following standard region properties, which have a well-defined meaning and prescribed data layout:

Standard property name

Data type

Component names

Color

float

R, G, B

Filled

int

Selection

int

Surface Area

float

Volume

float

The property Color can be set to give the faces bounding each of the volumetric regions a different color. It overrides the uniform mesh coloring otherwise controlled by the SurfaceMeshVis element.

The property Filled is a flag indicating for each region whether it is an interior region, e.g. inside a solid, or an empty exterior region, e.g. outside the solid bounded by the surface. This property is created by the ConstructSurfaceModifier. The same is true for the per-region properties Surface Area and Volume.

set_clipping_planes(planes)

Sets the clipping planes of this SurfaceMesh. The array planes must follow the same format as the one returned by get_clipping_planes().

property space_filling_region

Indicates the index of the spatial region that fills the entire domain in case the surface is degenerate, i.e. the mesh has zero faces. The invalid index -1 is typically associated with the empty (exterior) region.

to_triangle_mesh() Tuple[TriangleMesh, TriangleMesh, numpy.ndarray]

Converts the surface into a non-periodic TriangleMesh.

Returns

(trimesh, caps, facemap)

  • trimesh: A TriangleMesh representing the surface geometry after clipping it at the periodic boundaries of the domain and any attached clipping planes (see get_clipping_planes()).

  • caps: A TriangleMesh containing the cap polygons generated at intersections of the periodic surface mesh with boundaries of the simulation domain. Will be None if the surface mesh has no attached domain, the domain is degenerate, or the surface mesh does not represent a closed manifold.

  • facemap: A NumPy array of indices into the face list of this SurfaceMesh, one for each triangular face of the TriangleMesh trimesh. This map lets you look up for each face of the output mesh what the corresponding face of the input surface mesh is.

New in version 3.7.5.

property topology

A SurfaceMeshTopology object storing the face connectivity of the mesh.

property vertices

The PropertyContainer storing all per-vertex properties of the mesh, including the vertex coordinates.

In general, an arbitrary set of uniquely named properties may be associated with the vertices of a surface mesh. OVITO defines the following standard vertex properties, which have a well-defined meaning and prescribed data layout:

Standard property name

Data type

Component names

Color

float

R, G, B

Position

float

X, Y, Z

Selection

int

The property Position is always present and stores the Cartesian vertex coordinates.

The property Color can be set to give each vertex of the surface mesh an individual color. It overrides the uniform coloring otherwise controlled by the SurfaceMeshVis element. Vertex colors get interpolated across the mesh faces during rendering.

The property Selection controls the selection state of each individual mesh vertex. This property is set by modifiers that create selections, such as ExpressionSelectionModifier, and is used by modifiers that operate on the subset of currently selected vertices, such as AssignColorModifier. All vertices whose Selection property has a non-zero value are part of the current selection set.

class ovito.data.SurfaceMeshTopology

Base: ovito.data.DataObject

New in version 3.7.6.

This data structure holds the connectivity information of a SurfaceMesh. It is accessible through the SurfaceMesh.topology field. The surface mesh topology consists of vertices, faces and halfedges.

All these topological entities of the mesh are identified by numeric indices ranging from 0 to (vertex_count-1), (face_count-1), and (edge_count-1), respectively. The vertices and faces of the mesh may be associated with auxiliary properties, which are stored separately from the topology in the SurfaceMesh.vertices and SurfaceMesh.faces property containers. In particular, the spatial coordinates of the mesh vertices are stored as Position property array in SurfaceMesh.vertices.

../_images/halfedge_structure.png

A halfedge is a directed edge \(a \to b\) connecting two vertices \(a\) and \(b\) – depicted as a half-arrow in the figure. A face is implicitly defined by a circular sequence of halfedges that bound the face. Typically, halfedges come in pairs. The halfedge \(a \to b\) and its opposite halfedge, \(b \to a\), form a pair that links two neighboring faces together. Thus, halfedge pairs are essential for forming a connected, two-dimensional surface manifold. The surface is said to be closed, i.e., it has no open boundaries if all halfedges of the mesh are associated with corresponding opposite halfedges (see is_closed).

For each vertex the topology object maintains a linked-list of directed halfedges leaving that vertex. It can be accessed through the first_vertex_edge() and next_vertex_edge() methods.

For each face the topology object maintains a circular linked-list of directed halfedges bounding that face. It can be accessed through the first_face_edge() and next_face_edge()/prev_face_edge() methods.

adjacent_face(edge: int) int

Returns the face that is bounded by the halfedge edge.

count_face_edges(face: int) int

Returns the number of halfedges that bound face. See the code example for next_face_edge() to learn how this method works.

count_manifolds(edge: int) int
count_vertex_edges(vertex: int) int

Returns the number of halfedges that leave vertex. See the code example for next_vertex_edge() to learn how this method works.

property edge_count

Total number of halfedges in the SurfaceMesh. This property is read-only. Halfedges are created automatically by SurfaceMesh.create_face() or SurfaceMesh.create_faces() when adding new faces to the mesh topology.

property face_count

Number of faces in the SurfaceMesh. This is always equal to the count of the SurfaceMesh.faces property container.

This property is read-only. Use SurfaceMesh.create_face() or SurfaceMesh.create_faces() to add new faces to the mesh.

find_edge(face: int, vertex1: int, vertex2: int) int

Given a face, finds the halfedge of that face which leads from vertex1 to vertex2. If no such halfedge exists, returns -1.

This method can be used to quickly find the edge connecting two vertices of a face without the need to explicitly visit and check each edge bounding the face.

first_edge_vertex(edge: int) int

Returns the vertex the given halfedge is leaving from. To retrieve the vertex the halfedge is leading to, call second_edge_vertex().

first_face_edge(face: int) int

Returns some halfedge bounding the given face. Given that first halfedge, all other halfedges bounding the same face can be visited using next_face_edge() or prev_face_edge().

first_face_vertex(face: int) int

Given a face, this method returns some vertex of that face. This is equivalent to retrieving the vertex to which the first halfedge of the face is connected to, i.e. first_edge_vertex(first_face_edge(face)).

first_vertex_edge(vertex: int) int

Returns the head halfedge from the linked list of halfedges leaving vertex. Subsequent halfedges from the linked list can be retrieved with next_vertex_edge(). If no halfedges are connected to vertex, the method returns -1.

has_opposite_edge(edge: int) bool

Returns whether the given halfedge edge is associated with a corresponding reverse halfedge bounding an adjacent face in the same manifold. This is equivalent to checking the return value of opposite_edge(), which returns -1 to indicate that edge does not have an opposite edge.

has_opposite_face(face: int) bool

Returns whether face is part of a two-sided manifold. A face that is part of a two-sided manifold has a ‘partner’ face with opposite orientation, which can be retrieved through the opposite_face() method.

property is_closed

This is a read-only property indicating whether the surface mesh is fully closed. In a closed mesh, all faces are connected to exactly one adjacent face along each of their halfedges. That means the mesh presents a two-dimensional surface manifold without borders. Furthermore, a closed mesh divides space into an “interior” and an “exterior” region.

New in version 3.7.9.

next_face_edge(edge: int) int

Given the halfedge edge bounding some face, this method returns the following halfedge when going around the face in forward direction (counter-clockwise - when looking on the face from the front). All halfedges of the face form a circular sequence - without a particular beginning or end. You can loop over this circular sequence in forward or backward direction with the next_face_edge() and prev_face_edge() methods. Given some mesh face, you can obtain a first halfedge through the first_face_edge() method.

The following code example shows how to visit all halfedges of a face in order. Since the halfedges form a circular linked list, we have to remember which edge we started from to terminate the loop once we reach the first edge again:

def count_edges(mesh: SurfaceMesh, face: int) -> int:
    start_edge = mesh.topology.first_face_edge(face)
    count = 1
    edge = mesh.topology.next_face_edge(start_edge)
    while edge != start_edge:
        assert mesh.topology.adjacent_face(edge) == face
        count += 1
        edge = mesh.topology.next_face_edge(edge)
    return count

# The function defined above is equivalent to SurfaceMeshTopology.count_face_edges():
assert count_edges(mesh, 0) == mesh.topology.count_face_edges(0)
next_manifold_edge(edge: int) int
next_vertex_edge(edge: int) int

Returns another halfedge leaving from the same vertex as edge. Together with first_vertex_edge() this method allows you to iterate over all halfedges connected to a given vertex. Once the end of the linked list has been reached, the method returns -1.

The following example demonstrates how to visit all outgoing halfedges of some vertex and count them:

def count_edges(mesh: SurfaceMesh, vertex: int) -> int:
    count = 0
    edge = mesh.topology.first_vertex_edge(vertex)
    while edge != -1:
        assert mesh.topology.first_edge_vertex(edge) == vertex
        count += 1
        edge = mesh.topology.next_vertex_edge(edge)
    return count

# The function defined above is equivalent to SurfaceMeshTopology.count_vertex_edges():
assert count_edges(mesh, 0) == mesh.topology.count_vertex_edges(0)
opposite_edge(edge: int) int

Given the halfedge edge, returns the reverse halfedge that bounds an adjacent face. This opposite halfedge connects the same two vertices as edge but in reverse order. You can use this method to determine whether the face bounded by edge has a neighboring face that is part of the same manifold:

def get_neighboring_face(mesh: SurfaceMesh, edge: int) -> int:
    opp_edge = mesh.topology.opposite_edge(edge)
    if opp_edge == -1: return -1
    assert mesh.topology.first_edge_vertex(edge) == mesh.topology.second_edge_vertex(opp_edge)
    assert mesh.topology.second_edge_vertex(edge) == mesh.topology.first_edge_vertex(opp_edge)
    return mesh.topology.adjacent_face(opp_edge)

You may call the convenience method has_opposite_edge() to determine whether a halfedge is associated with a corresponding opposite halfedge. If the surface mesh does not form a closed manifold, the halfedges at the boundary of the manifold do not have opposite halfedges, because there are no adjacent faces where the surface terminates.

opposite_face(face: int) int

Returns the face on the opposite side of the two-sided manifold, or -1 if the manifold is one-sided. The returned face shares the same vertices with face but in reverse order. Note that opposite_face(opposite_face(face))==face.

prev_face_edge(edge: int) int

Given the halfedge edge bounding some face, this method returns the previous halfedge going around that face in backward direction (clockwise - when looking on the face from the front). All halfedges of a face form a circular sequence - without a specific beginning or end. You can loop over this circular sequence in forward or backward direction with the next_face_edge() and prev_face_edge() methods.

second_edge_vertex(edge: int) int

Returns the vertex the given halfedge is leading to. To retrieve the vertex the halfedge is leaving from, call first_edge_vertex().

property vertex_count

Number of vertices in the SurfaceMesh. This is always equal to the count of the SurfaceMesh.vertices property container.

This property is read-only. Use SurfaceMesh.create_vertices() to add new vertices to the mesh.

class ovito.data.TrajectoryLines

Base: ovito.data.PropertyContainer

Data object that stores the trajectory lines of a set of particles, which have been traced by the GenerateTrajectoryLinesModifier. It is typically part of a pipeline’s output data collection, from where it can be accessed via the DataCollection.trajectories field.

A TrajectoryLines object has an associated TrajectoryVis element, which controls the visual appearance of the trajectory lines in rendered images. This visual element is accessible through the vis attribute of the base class.

property particle_ids

The Property data array storing the particle IDs of the line vertices.

property positions

The Property data array storing the XYZ coordinates of the line vertices.

property time_stamps

The Property data array storing the time stamps of the line vertices.

class ovito.data.TriangleMesh

Base: ovito.data.DataObject

This data object type stores a three-dimensional mesh made of vertices and triangular faces. Such a mesh can describing general polyhedral geometry to be visualized side by side with the particle simulation data.

Typically, triangle meshes are imported from external geometry data files (e.g. STL, OBJ, VTK formats) using the import_file() function. See also the corresponding section of the OVITO user manual. All triangle meshes in a data collection are accessible through the DataCollection.triangle_meshes dictionary view.

Note that the SurfaceMesh class is a second object type that can represent surface geometries, just like a TriangleMesh. In contrast to triangle meshes, surface meshes may be embedded in periodic simulation domains and are closed manifolds in most cases. Furthermore, surface meshes can store arbitrary per-vertex and per-face property values – something triangle meshes cannot do. A triangle mesh is a more low-level data structure, which can be sent directly to a GPU for rendering. A surface mesh, in contrast, is a more high-level data structure, which gets automatically converted to a triangle mesh for visualization.

The visual appearance of the triangle mesh is controlled through the attached TriangleMeshVis element (see DataObject.vis field of base class).

A triangle mesh consists of \(n_{\mathrm{v}}\) vertices and \(n_{\mathrm{f}}\) triangular faces. These counts are exposed by the class as attributes vertex_count and face_count. Each face connects three vertices of the mesh, and several faces may share a vertex. The faces are stored as triplets of zero-based indices into the vertex list.

property face_count

The number of triangular faces of the mesh, \(n_{\mathrm{f}}\).

Default

0

get_faces()

Returns the list of triangles of the mesh as a NumPy array of shape \((n_{\mathrm{f}}, 3)\). The array contains for each face three zero-based indices into the mesh’s vertex list as returned by get_vertices(). The returned face array holds a copy of the internal data managed by the TriangleMesh.

get_vertices()

Returns the xyz coordinates of the vertices of the mesh as a NumPy array of shape \((n_{\mathrm{v}}, 3)\). The returned array holds a copy of the internal vertex data managed by the TriangleMesh.

set_faces(vertex_indices)

Sets the faces of the mesh. vertex_indices must be an array-like object of shape \((n_{\mathrm{f}}, 3)\) containing one integer triplet per triangular face. Each integer is a zero-based index into the mesh’s vertex list. The TriangleMesh copies the data from the array into its internal storage. If necessary, the value of face_count is automatically adjusted to match the first dimension of the vertex_indices array.

set_vertices(coordinates)

Sets the xyz coordinates of the vertices of the mesh. coordinates must be an array-like object of shape \((n_{\mathrm{v}}, 3)\). The TriangleMesh copies the data from the array into its internal storage. If necessary, the value of vertex_count is automatically adjusted to match the first dimension of the coordinates array.

property vertex_count

The number of vertices of the mesh, \(n_{\mathrm{v}}\).

Default

0

class ovito.data.VoxelGrid

Base: ovito.data.PropertyContainer

A two- or three-dimensional structured grid. Each cell (voxel) of the grid is of the same size and shape. The geometry of the entire grid, its domain, is defined by an attached SimulationCell object, which specific a three-dimensional parallelepiped or a two-dimensional parallelogram. See also the corresponding user manual page for more information on this object type.

The shape property of the grid specifies the number of voxels along each domain cell vector. The size of an individual voxel is given by domain cell size divided by the number of voxels in each spatial direction.

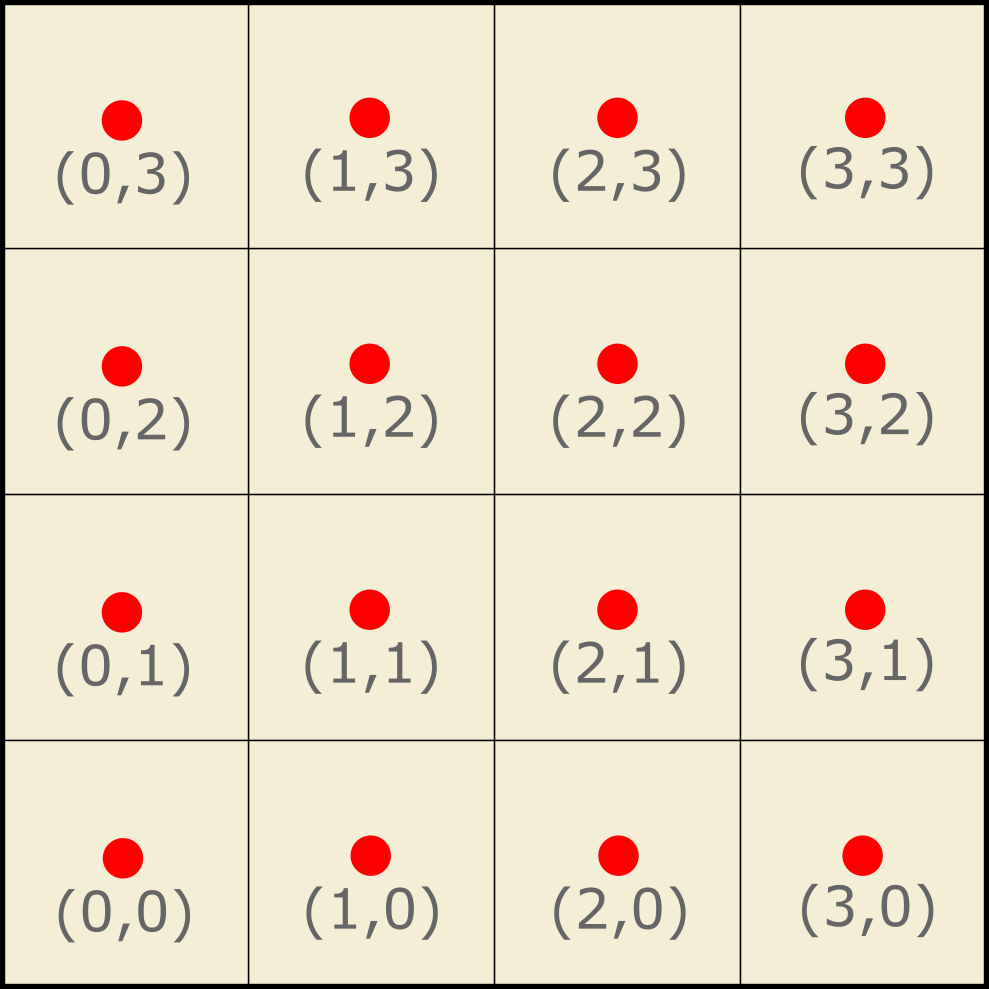

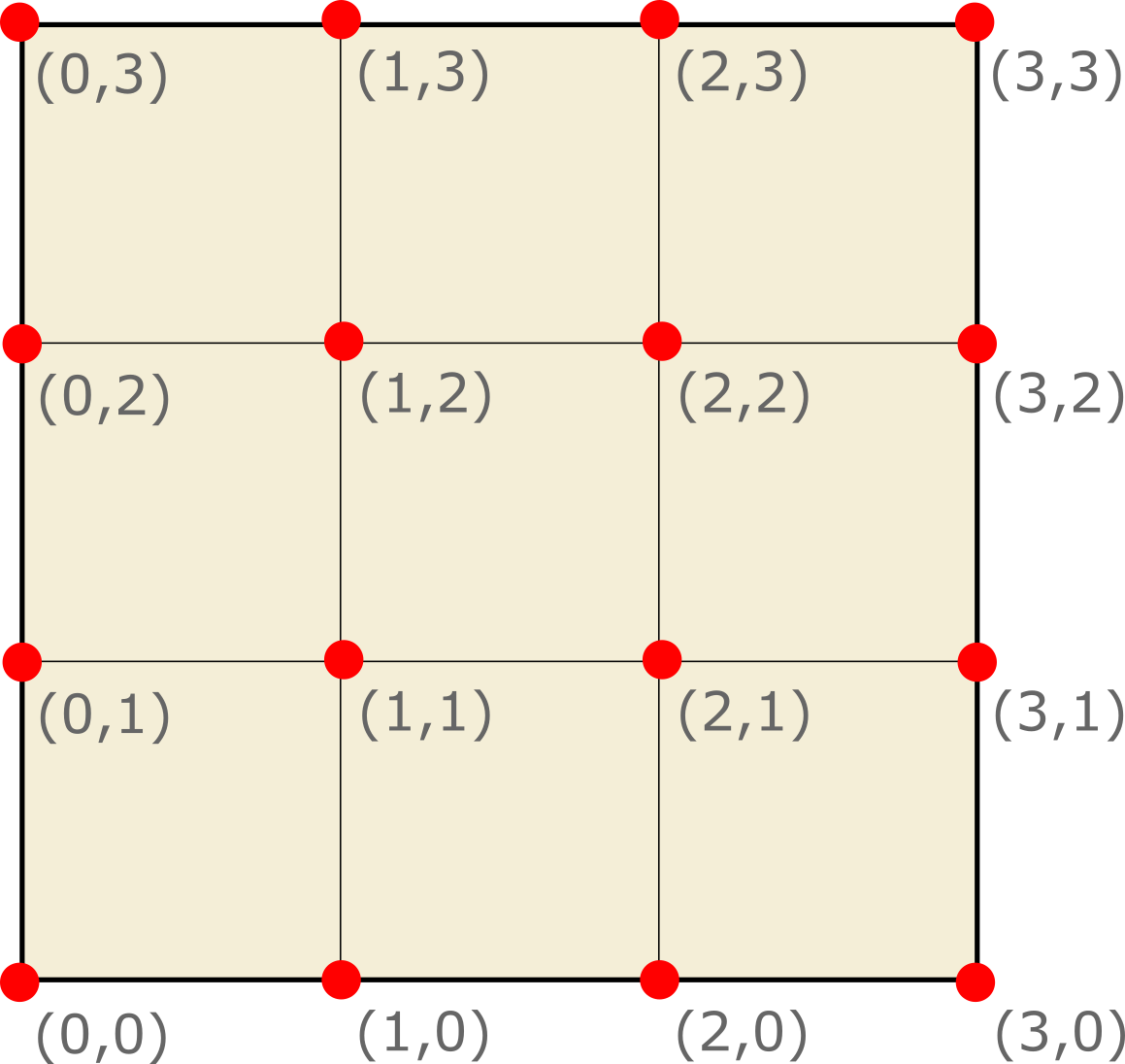

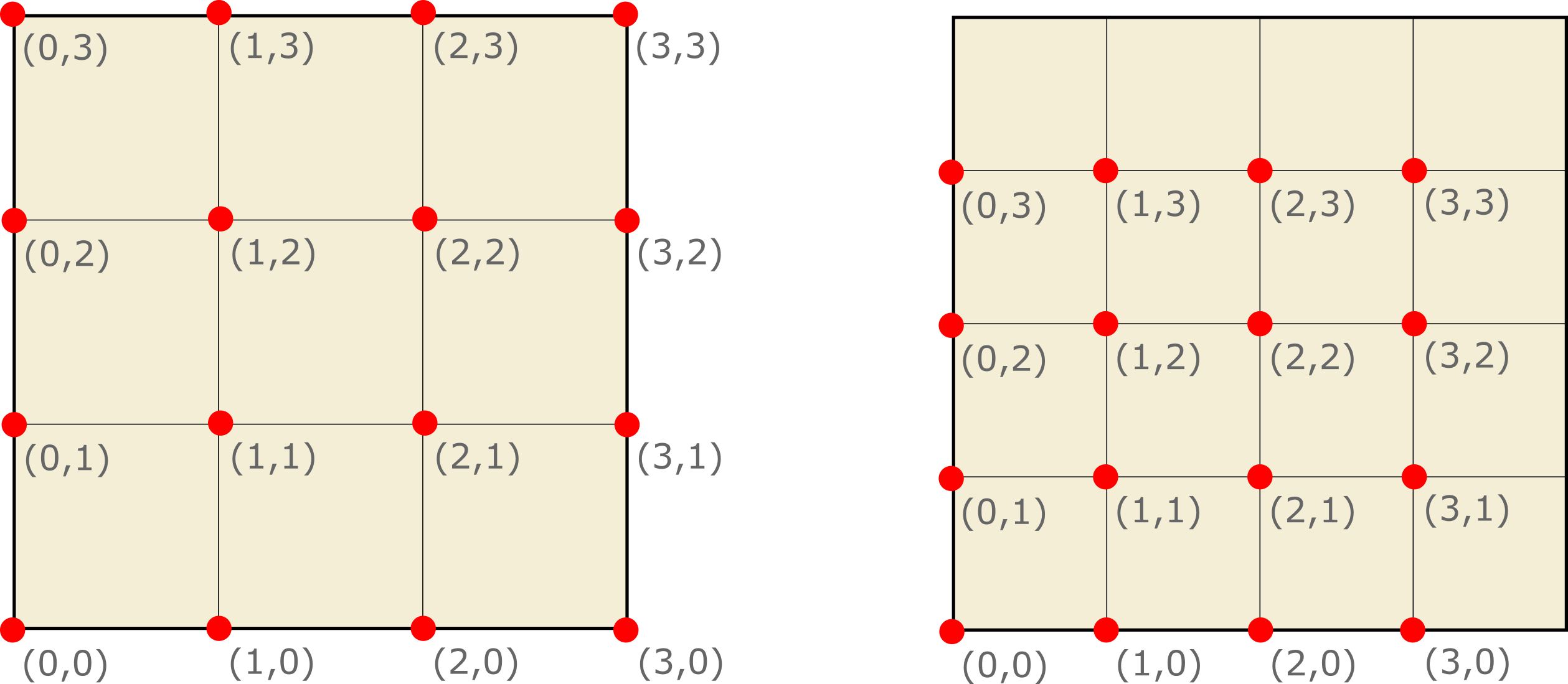

Every voxel of the grid may be associated with one or more field values. The data for these voxel properties is stored in standard Property objects, similar to particle or bond properties. Voxel properties can be accessed by name through the dictionary interface that the VoxelGrid class inherits from its PropertyContainer base class.

Voxel grids can be loaded from input data files, e.g. a CHGCAR file containing the electron density computed by the VASP code, or they can be dynamically generated within OVITO. The SpatialBinningModifier lets you project the information associated with the unstructured particle set to a structured voxel grid.

Given a voxel grid, the CreateIsosurfaceModifier can then generate a SurfaceMesh representing an isosurface for a field quantity defined on the voxel grid.

Example

The following code example demonstrates how to create a new VoxelGrid from scratch and initialize it with data from a Numpy array:

# Starting with an empty DataCollection:
data = DataCollection()

# Create a new SimulationCell object defining the outer spatial dimensions
# of the grid and the boundary conditions, and add it to the DataCollection:
data.cell = SimulationCell(pbc=(True, True, True), vis=SimulationCellVis(line_width=0.03))
data.cell_[:,:3] = [[10,0,0],[0,10,0],[0,0,10]]

# Generate a three-dimensional Numpy array containing the grid cell values.
nx = 10; ny = 6; nz = 8
field_data = numpy.random.random((nx, ny, nz))

# Create the VoxelGrid object and give it a unique identifier by which it can be referred to later on.
# Link the voxel grid to the SimulationCell object created above, which defines its spatial extensions.
# Specify the shape of the grid, i.e. the number of cells in each spatial direction.
# Finally, assign a VoxelGridVis visual element to the data object to make the grid visible in the scene.
grid = VoxelGrid(
    identifier = 'field',
    domain = data.cell,
    shape = field_data.shape,
    vis = VoxelGridVis(enabled=True, transparency=0.6))

# Associate a new property with the voxel grid cells and initialize it with the data from the Numpy array.
# Note that the data must be provided as linear (1-dim.) array with the following type of memory layout:
# The first grid dimension (x) is the fasted changing index while the third grid dimension (z) is the slowest varying index.
# In this example, this corresponds to the "Fortran" memory layout of Numpy.
grid.create_property('Field Value', data=field_data.flatten(order='F'))

# Insert the VoxelGrid object into the DataCollection.
data.objects.append(grid)

# For demonstration purposes, compute an isosurface on the basis of the VoxelGrid created above.
data.apply(CreateIsosurfaceModifier(operate_on='voxels:field', property='Field Value', isolevel=0.7))
property domain

The SimulationCell describing the (possibly periodic) domain which this grid is embedded in. Note that this cell generally is independent of and may be different from the cell found in the DataCollection.

property shape

A tuple with the numbers of grid cells along each of the three cell vectors of the domain.

For two-dimensional grids, for which the is2D property of the domain is set to true, the third entry of the shape tuple is always equal to 1.

Assigning new shape dimensions to the grid automatically resizes the one-dimensional data arrays of the PropertyContainer base class if necessary and updates its PropertyContainer.count property to be equal to the product of the three shape dimensions, i.e. the total number of voxel cells.
